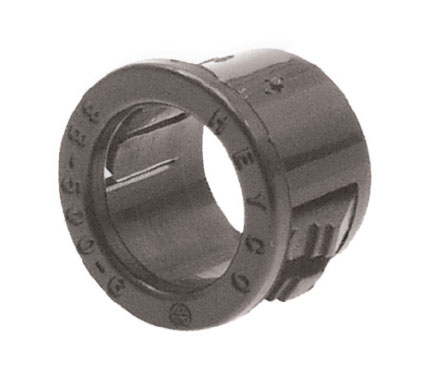

Heyco Products 2126 Snap Bushing Connector
Heyco Snap Bushings are designed for secure and reliable cable management in various industrial applications. These bushings offer a quick and easy installation process, with locking fingers that snap into holes using fingertip pressure. They provide insulation and mechanical protection for electrical and telecommunications cables, tubing, hose, rope, and utility lines. Available in multiple sizes to accommodate different hole diameters, Heyco Snap Bushings are a versatile solution for panel thickness up to .125˝ and withstand a push-back force of 35 pounds.
Heyco Products 2126 Snap Bushing Connector Specifications:
- Mounting Hole Diameter Range: 0.250˝ (6,4 mm) to 0.875˝ (22,2 mm)
- Material: Nylon 6/6
- Flammability Rating: 94V-2
- Material Temperature Index: 257°F (125°C) – Maximum temperature on part not to exceed 221°F (105°C)
- Push Back Force: 35 pounds
- Panel Thickness: Up to .125˝ (3,2 mm)
Buy the 2126 HEYCO PRODUCTS Snap Bushing Connector | myMectronic
Purchase the HEYCO PRODUCTS 2126 Snap Bushing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products 2126?
You can click on the BUY or RFQ button to purchase 2126 from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part 2126?
You can download the 2126 datasheet or visit the Heyco Products website for support.
Who is the manufacturer of 2126?
Heyco Products
