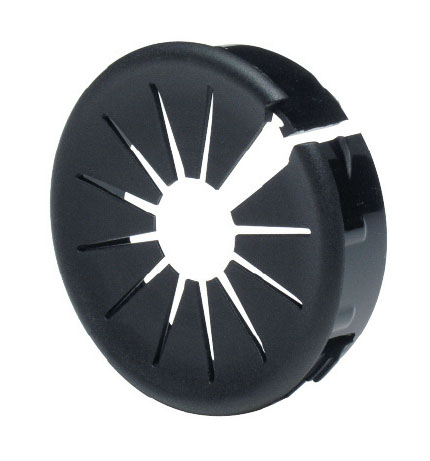

Heyco Products 2137SP Open Closed Universal Bushing
Heyco Open/Closed Universal Bushings are designed for versatile cable management in a range of industrial applications. Their split design allows for side entry and encirclement of pre-assembled harnesses, while flexible shutters adapt to different cable diameters. These bushings provide vibration absorption, cushioning, and insulation, making them ideal for protecting cables and tubing in electronic equipment and machinery. They are available in standard black and can be customized for other colors upon request.
Heyco Products 2137SP Open Closed Universal Bushing Specifications:
- Mounting Hole Diameter Range: 0.500˝ (12,7 mm) to 2.500˝ (63,5 mm)
- Maximum A: 0.39 in. / 9.8 mm
- Maximum B: 0.56 in. / 14.2 mm
- Inside Head Diameter: N/A
- Overall Diameter: N/A
- Maximum Height: 0.39 in. / 9.8 mm
- Material: Nylon 6/6
- Flammability Rating: 94V-2
- Temperature Range: -.4°F (-18°C) to 221°F (105°C)
- Certifications: UL Recognized, CSA Certified
Buy the 2137SP HEYCO PRODUCTS Open Closed Universal Bushing | myMectronic
Securely purchase the HEYCO PRODUCTS 2137SP Open Closed Universal Bushing and ensure reliable cable management for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products 2137SP?
You can click on the BUY or RFQ button to purchase 2137SP from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part 2137SP?
You can download the 2137SP datasheet or visit the Heyco Products website for support.
Who is the manufacturer of 2137SP?
Heyco Products
