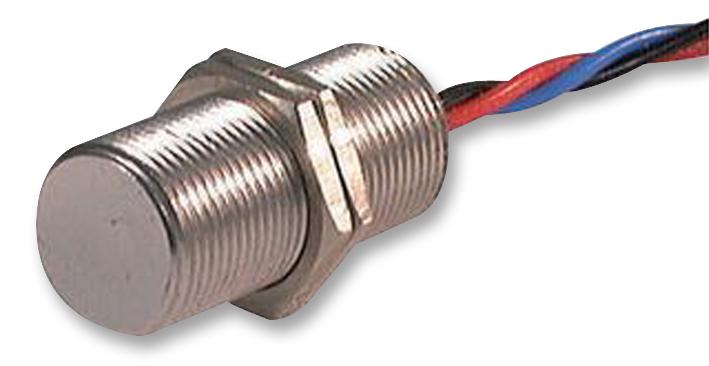

Honeywell 103SR13A1 Hall-effect Position Sensor
The 103SR Series Hall-effect position sensors feature rugged, sealed aluminum or stainless steel housings designed to meet various environmental standards including NEMA 3, 4, 12, 13. They respond to magnetic fields from permanent or electromagnets, offering digital unipolar, latching, and linear magnetic types suitable for industrial, transportation, and medical applications. These sensors operate reliably in harsh conditions with wide temperature ranges from -40°C to 125°C, and supply voltages from 4.5 Vdc to 24 Vdc, providing stable outputs for precise position sensing and control.
Honeywell 103SR13A1 Hall-effect Position Sensor Specifications:
- Housing: Sealed aluminum or stainless steel, NEMA 3, 4, 12, 13 compliant
- Response to magnetic fields from permanent or electromagnets
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
- Supply voltage: 4.5 Vdc to 24 Vdc (digital), 4.5 Vdc to 10.5 Vdc (linear)
- Output: Open-collector sinking (digital) or push-pull (linear)
- Magnetic types: Unipolar, latching, linear
- Mounting: Threaded, with adjustable positioning via metal housing
- Certifications: Meets industry standards including NEMA 3, 4, 12, 13
- Lead wire options: Various gauges and lengths including 22, 24 gauge, and different insulations
- Protection: Absolutely sealed potting in rugged housings for dust, dirt, and liquid splash protection
Buy the Buy Honeywell 103SR Series Part Number 103SR13A1 Online
Order the Honeywell 103SR Series Hall-effect position sensor online today to enjoy dependable, rugged performance in demanding environments. With sealed aluminum or stainless-steel housings, these sensors provide precise digital, latching, and linear position sensing suitable for industrial, transportation, and medical applications. They operate from -40°C to 125°C, with wide voltage ranges up to 24 Vdc, ensuring reliable operation in harsh conditions. Easy mounting and versatile wire options make integration seamless, delivering long-lasting, solid-state reliability for your critical position sensing needs.
Buy Honeywell 103SR13A1 now and experience unmatched reliability and performance with rugged, sealed housing for harsh environments.
Frequently Asked Questions
Where can I buy Honeywell 103SR13A1?
You can click on the BUY or RFQ button to purchase 103SR13A1 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 103SR13A1?
You can download the 103SR13A1 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 103SR13A1?
Honeywell
