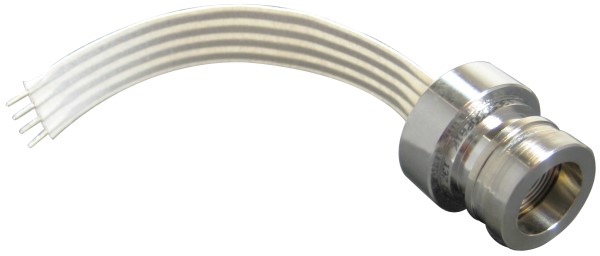

Honeywell 13C2000PA1K Stainless Steel Pressure Sensor
Honeywell’s 13C2000PA1K is a robust stainless steel pressure sensor engineered for high-pressure applications involving hostile media. Utilizing a proven piezoresistive semiconductor sensor chip in an oil-isolated housing, this sensor provides reliable, stable, and accurate pressure measurement. Its weld-ring collar and back support ring enable high cycle life and facilitate integration into OEM applications. Ideal for industrial controls, hydraulic systems, and tank pressure monitoring, the 13C2000PA1K delivers dependable performance in demanding environments.
Honeywell 13C2000PA1K Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 Gat 20Hz to 2000Hz
- Shock: 100 Gfor 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩat 50 Vdc
- Supply voltage (K version): +15Vdc
- Supply current (L version): +2.0 mA
- Zero pressure offset: -2 to +2 mV
- Pressure non-linearity: ±0.1 to ±0.25 %FSS
- Pressure hysteresis: ±0.015 to ±0.030 %FSS
- Repeatability: ±0.010 to ±0.030 %FSS
- Temp. effect on span: ±0.5 to ±1.0 %FSS
- Temp. effect on offset: ±0.5 to ±1.0 %FSS
- Thermal hysteresis: ±0.1 to ±0.3 %FSS
- Long-term stability: ±0.1 to ±0.3 %FSS
- Response time: 0.1 ms
- Common mode voltage (K version): 0.50 to 2.0 Vdc
- Input resistance (L version): 2.0 to 8.0 kΩ
- Input resistance (K version): 8.0 to 50 kΩ
- Output resistance: 3.0 to 6.0 kΩ
- Pressure range: 0 psi to 2000 psi
- Full scale span: 98mV to 102 mV
- Proof pressure: 6000 psi
- Burst pressure: 10,000 psi
Buy the 13C2000PA1K HONEYWELL Stainless Steel Pressure Sensor | myMectronic
Purchase the Honeywell 13C2000PA1K pressure sensor securely and efficiently for your industrial needs.
Buy Now
