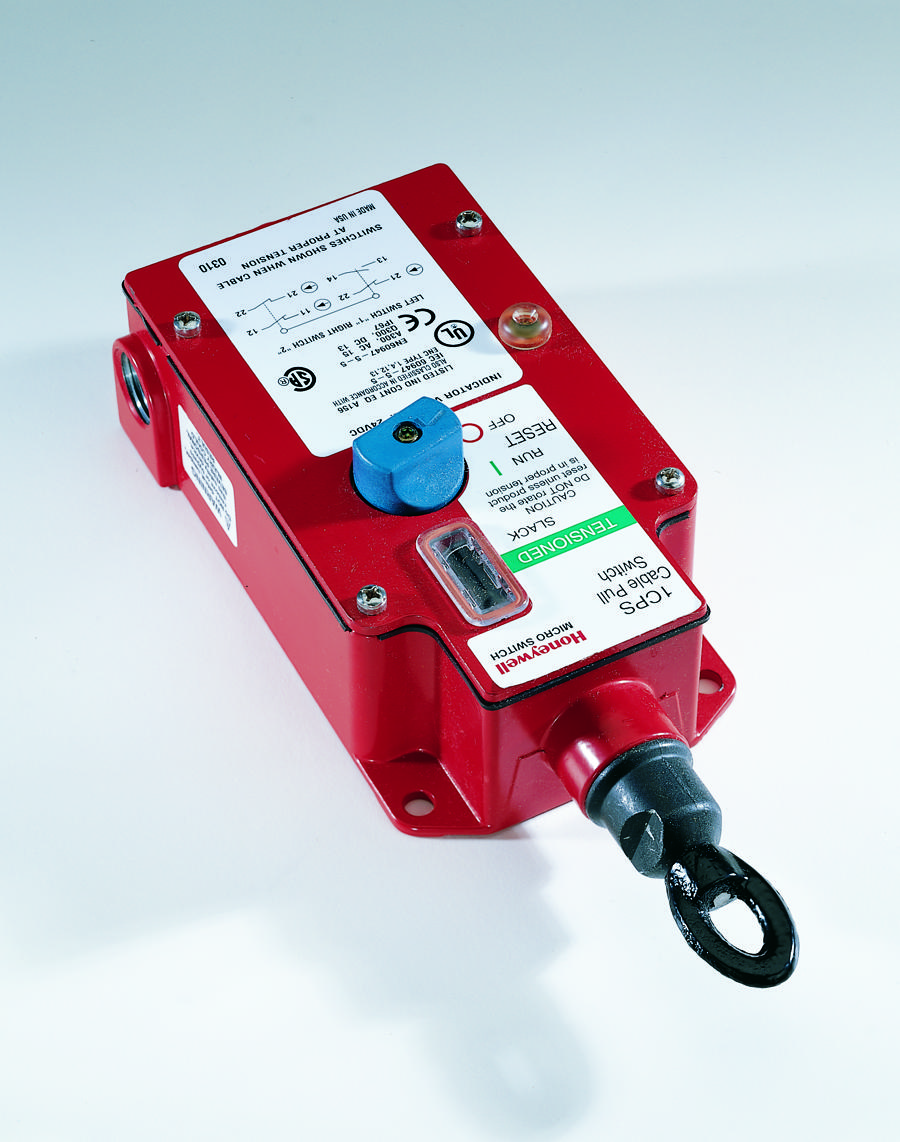

Honeywell 1CPSA3 Cable Pull Safety Switch
The Honeywell CPS Series Cable Pull Safety Switch provides a reliable emergency stop signaling solution for conveyor and assembly line applications. Designed for long cable spans up to 76 meters or 152 meters depending on series, these switches feature direct opening NC contacts, large wiring cavities, and a variety of contact configurations. Ideal for environments with temperature variations, vibration, and potential hose-down conditions, they ensure safety and operational efficiency, with LED indicators for status monitoring. Suitable for industrial automation, machinery safeguarding, and high vibration environments, the switches support robust design and easy installation.
Honeywell 1CPSA3 Cable Pull Safety Switch Specifications:
- Contact Configuration: 2NO/2NC, 1NO/3NC or 4NC for 2CPS; 1NO/1NC, 2NO/2NC, 1NO/3NC or 4NC for 1CPS
- Contact Material: Silver (gold-plated optional on some models)
- Mechanical Life: 1,000,000 operations
- Degree of Protection: IP67; NEMA 1, 4, 12, 13
- Operating Temperature Range: -25°C to +80°C / -13°F to +176°F
- Cable Span: 76 m (250 ft) typical, up to 152 m (500 ft) for 2CPS
- Conduit Thread: 1/2" NPT or 20 mm
- Vibration Resistance: 10 Hz - 500 Hz, 5 g
- Shock Resistance: 159 g
- Housing Material: Die-cast zinc
- Electrical Ratings: UL & CSA approvals, IEC standards
- Indicator Lights: 24 Vdc or 120 Vac multicluster LED options
- Wiring: Large wiring cavity with straight-through wiring
Buy the Honeywell Series CPS Cable Pull Safety Switch: 1CPSA3
Purchase the Honeywell CPS Series Cable Pull Safety Switch online today to enhance your machinery safety system. Designed for long spans and high vibration environments, it features reliable NC contacts, LED status indicators, and robust zinc housing. Easy to install with straight-through wiring and versatile contact configurations, this switch ensures long-lasting durability and operational safety. Ideal for conveyor systems, assembly lines, and industrial environments requiring quick, dependable emergency stop signals. Order now to improve safety and productivity efficiently.
Get Honeywell CPS Cable Pull Safety Switch today—built for precise emergency signaling in conveyor and automation applications.
Frequently Asked Questions
Where can I buy Honeywell 1CPSA3?
You can click on the BUY or RFQ button to purchase 1CPSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 1CPSA3?
You can download the 1CPSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 1CPSA3?
Honeywell
