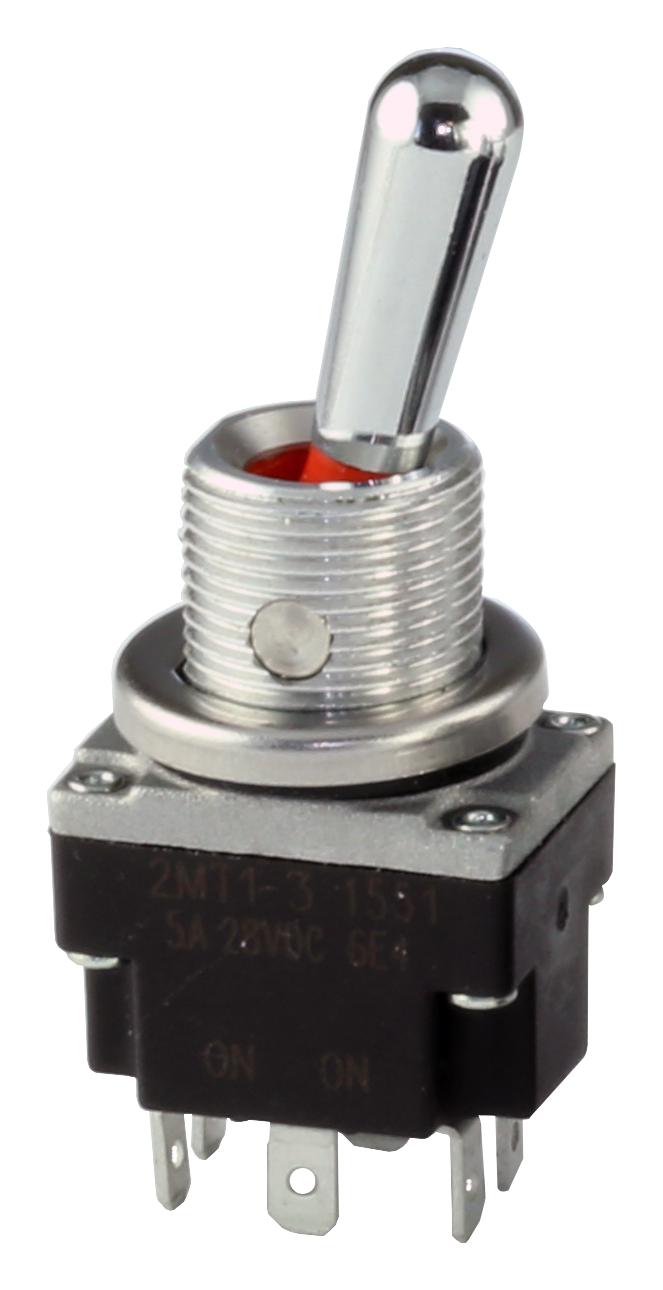

Honeywell 2MT23 miniature toggle switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged, cost-effective, and designed for demanding outdoor environments. Features include a seal between the toggle lever and bushing, and between the cover and case, enabling resistance to dust, water, vibration, and temperature extremes. Capable of handling up to 60,000 electrical cycles, these switches support IP67/IP68 sealing standards and are suitable for applications like remote control boxes in concrete pumping, cranes, material handling, and boom trucks. Available with 2- or 3-position options, they offer high durability for industrial uses.
Honeywell 2MT23 miniature toggle switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Actuators: Industry standard polished lever, industry standard, metal or plastic
- Action: 2- or 3-position; momentary and maintained
- Mounting: Panel mount with 15/32 in (0.47 in) bushing, sealed to prevent water and dust ingress
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Terminations: Solder
- Contacts: Silver alloy, gold plated
- Amp Rating: 5A, 28 Vdc; 100 mA, 28 Vdc
- Electrical Life: Up to 60,000 cycles (SPDT, silver alloy and gold-plated contacts); 25,000 cycles (DPDT, silver alloy contacts); 60,000 cycles (DPDT, gold-plated contacts)
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA for 1 minute between open terminals
- Salt Spray: 96 hours resistance to red rust as per SAE J1455
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2 hours each direction
- Solder Ability: UL 61058-1, 350 °C +10 °C, 3 seconds
- Approvals: UL Recognized, CE Certified
- Dimensions: 26.7 mm H x 20 mm W x 15 mm D
Buy the Honeywell Series MT Toggle Switch: 005437
Purchase the Honeywell MICRO SWITCH MT Series miniature toggle switch online today to ensure durable and reliable operation in outdoor and industrial environments. With high sealing ratings of IP67/IP68, up to 60,000 electrical life cycles, and versatile circuit options including 2- and 3-position configurations, this switch delivers exceptional performance in harsh conditions. Its rugged design withstands dust, water, vibration, and extreme temperatures, making it ideal for remote control boxes in cranes, concrete pumps, and material handling equipment. Order now for quick delivery and long-lasting operation.
Buy Honeywell 005437 miniature toggle switch now and experience unmatched reliability and performance in demanding outdoor applications.
