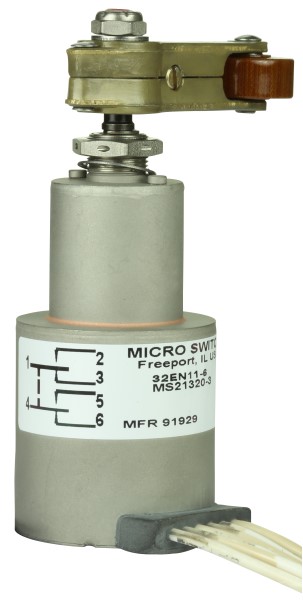

Honeywell 32EN116 Environmentally Sealed Limit Switch
Honeywell's MICRO SWITCH™ EN Series are environmentally sealed limit switches designed to meet the demands of critical applications in commercial and military aircraft, ground-based equipment, and off-road vehicles. These switches are manufactured and qualified to MIL-PRF-8805 standards, ensuring durability and reliability in severe environments. The EN Series offers a wide range of configurations, including various circuitries, actuators, and terminations, making them suitable for diverse applications such as landing gear systems, WOW switch functionality, and door/hatch sensing. Their rugged stainless steel housing, all-metal drive train, and resilient sealing provide consistent operation and protection against dust, water, and ice.
Honeywell 32EN116 Environmentally Sealed Limit Switch Specifications:
- Housing and bushing material: 300 Series stainless steel
- Contact material: Silver alloy, gold plated, gold bifurcated
- Mechanical endurance: 25,000 cycles min.
- Electrical endurance: 25,000 cycles min. @ rated load
- Circuitry: 1PST to 6PDT
- Electrical rating: Up to 15 A @ 28 Vdc
- Dielectric strength: 1000 V RMS; 500 μA max. leakage
- Insulation resistance: 500 Vdc; 1000 Megohms min.
- Environmental sealing: Symbol 4, resilient seal per MIL-PRF-8805
- Temperature range: -54 °C to 125 °C [-65 °F to 257 °F]
- Shock: Symbol M (100 g) per MIL-PRF-8805
- Vibration: Symbol 1, 10 g peak (10 Hz to 500 Hz)
- Standards: Design conforms to MIL-PRF-8805
