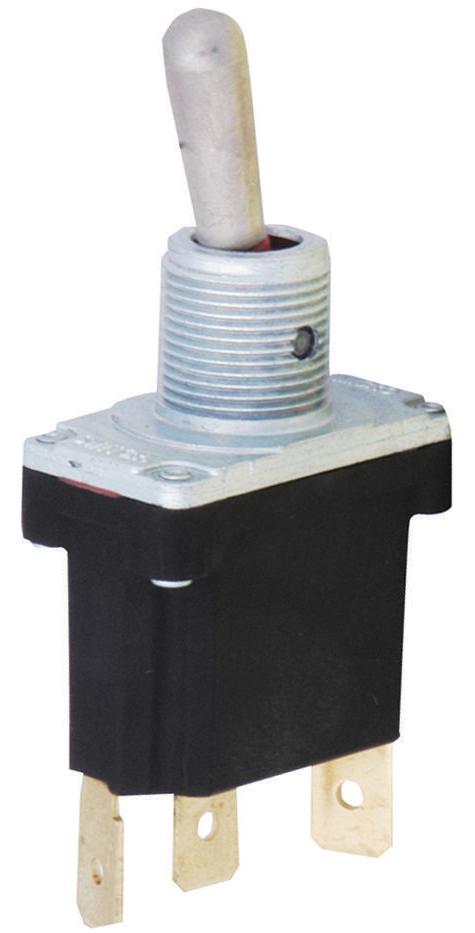

Honeywell 32NT913 Commercial Grade Toggle Switch
Honeywell's MICRO SWITCH™ NT Series toggle switches provide a robust and economical solution for a wide range of commercial and industrial applications. Constructed with a seal between the toggle lever and bushing, and between the cover and case, these switches are well-suited for environments exposed to vibration, temperature extremes, dust, and water. Available in step-base and flat-base styles with multiple termination options, the NT Series offers versatility for various installation needs. Features include NEMA 3, 3R, 4, 13 and IP67/68 environmental sealing, UL and CSA certifications, and options for gloved-hand operation and reduced installation time. They are commonly used in aerial platform lifts, construction equipment, and railroad maintenance equipment.
Honeywell 32NT913 Commercial Grade Toggle Switch Specifications:
- switch_type: toggle
- sealing: NEMA 3, 3R, 4, 13 and IP67/68
- operating_temperature: -40 °C to 71 °C [-40 °F to 160 °F]
- actuators: Standard, locking, special design, tab
- action: 2- or 3- position; momentary and maintained
- mounting_bushing_diameter: 15/32 in (0.47 in)
- circuitry_options: SPST, SPDT, DPST, DPDT, 4PST, 4PDT
- termination_options: Screw, solder, quick connect
- contact_material: Silver alloy, gold-plated
- amp_rating: Up to 20 A (resistive)
- approvals: UL, CSA, CE
- dimensions_h_x_w_x_d: 26,7 mm x 33,5 mm x 22,6 mm [1.05 in x 1.32 in x 0.89 in]
