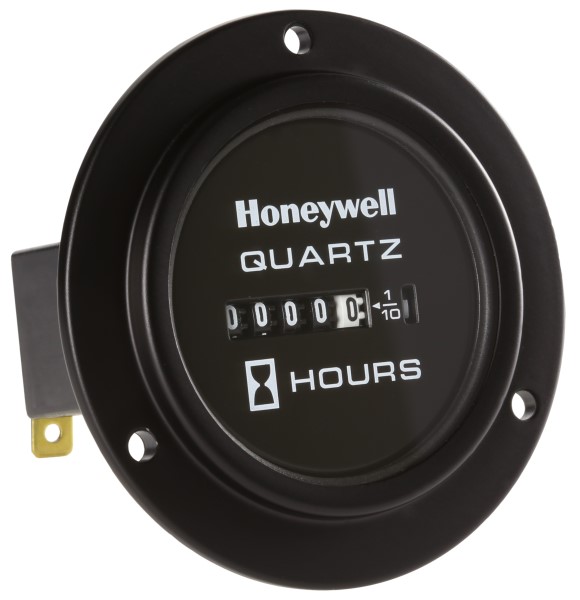

Honeywell 8501402 Quartz Hour Meter
The Honeywell 85000 Series Quartz Hour Meter (part number 85014-02) delivers exceptional performance and reliability in a technically advanced quartz package. Designed with a highly reliable drive mechanism, an improved odometer gear train, and a snap-together integrated chassis, this meter is built to withstand demanding conditions. The sealed case, constructed from engineered plastic, provides protection against acids and solvents. It's ideal for applications requiring precise time tracking in environments with vibration, shock, and temperature extremes, such as industrial equipment, vehicles, and machinery. Customization options are available including custom logos, various terminals, and filtered versions.
Honeywell 8501402 Quartz Hour Meter Specifications:
- Operating_Time: 10,000 hours with automatic recycle to zero
- Temperature_Range: -40°F to +185°F (-40°C to +85°C)
- Quartz_Accuracy: +/-200ppm, +/-0.02%
- Operating_Voltage_Range: 5-110 VDC
- Odometer_Type: Precision built relay driven
- Vibration_Resistance: 20 g's @ 10-80Hz (SAE J1378), 10 g's (per MIL-M-3971)
- Shock_Resistance: 55 g's @ 9-13msec (SAE J1378), 75 g's (per MILM-3971)
- Transient_Voltage_Protection: Alternator load dump: 150V, EMI: +400V @ 500Hz, Inductive switching and reverse polarity
- Terminals: 1/4" male blade
- Lens_Material: Glass
- Case_Material: Polyester
- Number_Size: 0.12" (3mm)
- Battery_System_Voltages: 6, 12, 24, 36, 48, 60, 72, and 80 VDC
- UL_Recognition: File number AU1774
- CSA_Certification: File number LR42455-12
- Compliance_Standard: Conforms to MIL-M-3971
- Panel_Cutout_Tolerance: ± .010"
