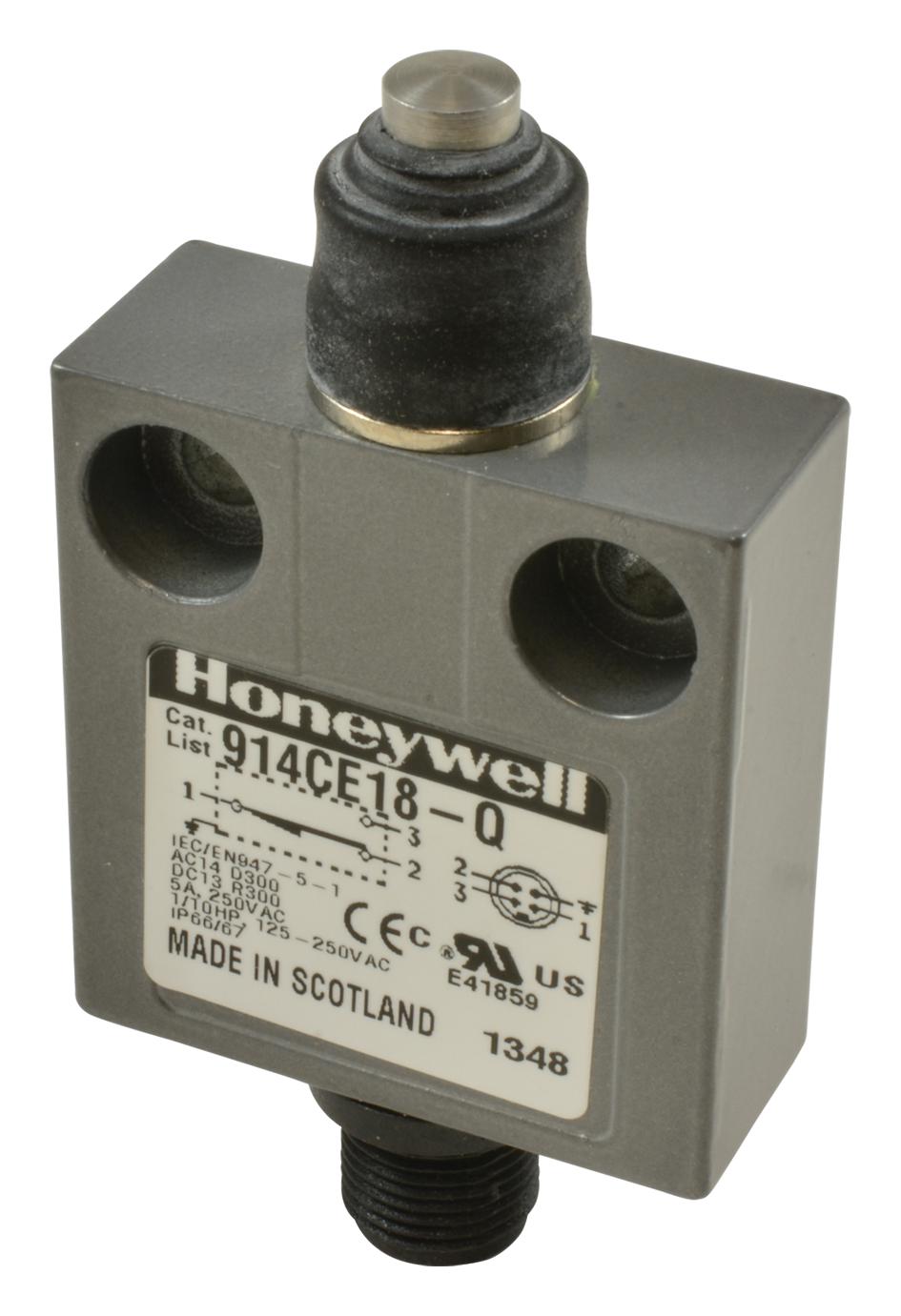

Honeywell 914CE18Q Compact Precision Limit Switch
Honeywell's 914CE Series compact precision limit switches are designed for demanding industrial environments. These switches incorporate fluorocarbon diaphragm sealing, providing reliable protection and meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 as well as IP66, IP67, and IP68 requirements. The robust die-cast zinc housing and epoxy sealant ensure excellent resistance in harsh conditions, making them suitable for applications in machine tools, off-road equipment, material handling, and more. Available with various actuators and connector options, the 914CE Series provides versatility and ease of installation.
Honeywell 914CE18Q Compact Precision Limit Switch Specifications:
- Actuators: Plain plungers, roller plungers, side rotary, multi-directional wire, manually operated
- Sealing: NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13; IP66/67/68
- Operating Temperature: 0 °C to 105 °C (32 °F to 221 °F); optional -40 °C to 105 °C (-40 °F to 221°F)
- Mechanical Life: Up to 10 million cycles (5 million for wobble actuators)
- Rated Insulation Voltage: 250 V
- Rated Impulse Withstand Voltage: 1.5 kV
- Pollution Degree: 3
- Min. Actuation Speed: 0.003 m/s
- Max. Actuation Speed: 0.1 m/s
- Max. Actuation Frequency: 200 Hz (AC), 20 Hz (DC)
- Shock: 50 g
- Vibration: 10 G
- Approvals: cURus, CE
- Conforming to Standards: IEC947-5-1, EN 60947-5-1; AC14 D300, DC13 R300
- UL Recognition: UL recognized to US and Canadian Requirements
Buy the 914CE18-Q HONEYWELL Compact Precision Limit Switch | myMectronic
Purchase the Honeywell 914CE18-Q Compact Precision Limit Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 914CE18Q?
You can click on the BUY or RFQ button to purchase 914CE18Q from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 914CE18Q?
You can download the 914CE18Q datasheet or visit the Honeywell website for support.
Who is the manufacturer of 914CE18Q?
Honeywell
