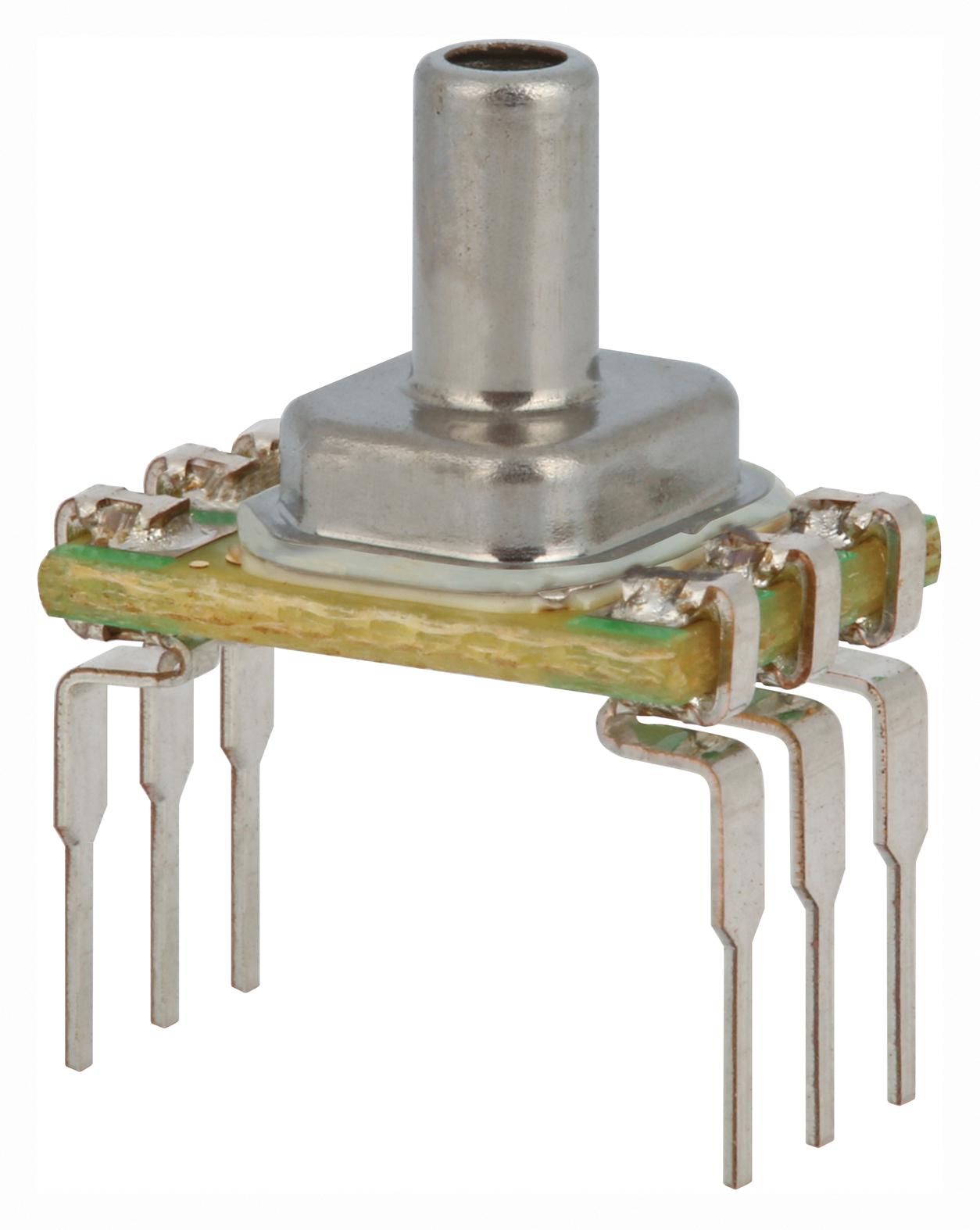

Honeywell ABP2DSNT150PGAA5XX Pressure Sensor
The ABP2 Series are high-accuracy, compensated/ amplified board mount pressure sensors suitable for liquid media. They offer digital or analog output options with wide pressure ranges from 6 mbar to 12 bar (600 Pa to 1.2 MPa) and operate within -40°C to 110°C. Features include IP-certified construction, long-term stability, low power consumption, and compatibility with various media. Ideal for medical, industrial, commercial, and transportation applications, they provide reliable, selectable pressure units, and support IoT integrations, meeting industry standards for accuracy and durability.
Honeywell ABP2DSNT150PGAA5XX Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar (600 Pa to 1.2 MPa, 2 inH2O to 175 psi)
- Accuracy: ±0.25 %FSS BFSL
- Total Error Band: as low as +1.5 %FSS
- Long-term Stability: as low as 40.2 %FSS
- Operating Temperature: -40°C to 110°C (-40°F to 230°F)
- Supply Voltage: 3.3 Vdc to 5 Vdc
- Power Consumption: as low as 0.01 mW (sleep mode), up to 3.5 mW (active)
- Output Options: Digital (I2C or SPI), Ratiometric Analog
- Liquid Media Compatibility: with gel coating for non-corrosive liquids
- Sensor Material: Silicon, Food-grade Silicone Gel (liquid media)
- Certifications: ISO 9001, IEC/JEDEC J-STD-020E, REACH, RoHS, NSF-169, LFGB, BPA Free
- Response Rate: Updated at ~200 Hz
- Mounting: Board mount, with various pressure port configurations including axial and radial barbed ports
Buy the Honeywell Series ABP2 Pressure: 600 Pa to 1.2 MPa
Purchase the Honeywell ABP2 Series Pressure Sensor online today for reliable, high-accuracy measurements across a wide pressure range. Its robust design supports liquid media applications, with digital and analog outputs for easy integration into your systems. Featuring low power consumption, excellent long-term stability, and industry-standard certifications, this sensor is ideal for medical, industrial, commercial, and transportation needs. Enjoy fast delivery and technical support to enhance your project’s performance with this versatile, durable pressure sensing solution.
Get Honeywell ABP2 pressure sensor today—built for precision and long-lasting durability, supporting multiple media types and IoT-ready features.
Frequently Asked Questions
Where can I buy Honeywell ABP2DSNT150PGAA5XX?
You can click on the BUY or RFQ button to purchase ABP2DSNT150PGAA5XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2DSNT150PGAA5XX?
You can download the ABP2DSNT150PGAA5XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2DSNT150PGAA5XX?
Honeywell
