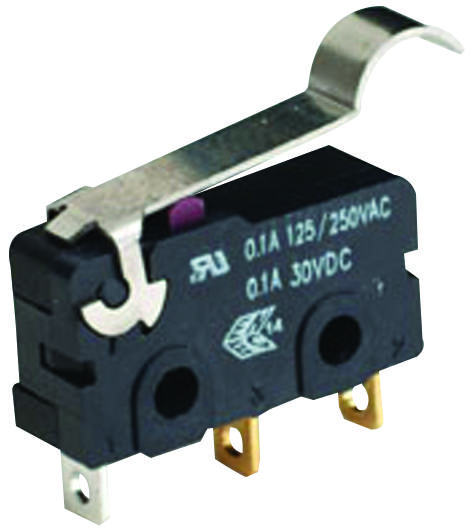

Honeywell ZM50E10E01 Micro Switch
The ZM series MICRO SWITCH™ subminiature basic switch is designed for simple or precision ON/OFF applications. It features a compact, lightweight polyamide housing with dimensions of 10.6mm height, 6.4mm width, and 19.8mm length. This switch offers a range of electrical ratings, including low energy and power duty options, with contact materials such as gold or silver. It is available in single pole double throw (SPDT) or single pole single throw (SPST) configurations, with rated currents of 0.1A, 5A, 10.1A, or 16A. The switch can be customized with various actuation, termination, and operating characteristics, making it suitable for applications in communications and networking, medical devices, test and measurement equipment, HVAC systems, and computer peripherals.
Honeywell ZM50E10E01 Micro Switch Specifications:
- Housing Material: Polyamide
- Dimensions: 10.6 mm x 6.4 mm x 19.8 mm (0.42 in x 0.25 in x 0.78 in)
- Actuator Options: Pin plunger, straight lever (6 lengths), simulated roller lever (3 styles), roller lever, L-shaped lever, special levers
- Contact Material: Gold-plated silver alloy or silver alloy
- Electrical Ratings: 0.1A, 5A, 10.1A, or 16A at 125/250 Vac
- Switch Type: SPDT, SPNC, SPNO
- Operating Force: 60g, 104g, 146g, 249g
- Temperature Range: -40°C to 125°C (-40°F to 257°F)
- Sealing: IP40 (with standard sealing)
- Termination: Solder, PCB (standard, left, or right)
- Mechanical Endurance: Up to 5,000,000 cycles
- Certification: UL, cUL, CE, CQC, RoHS, Reach
- Applications: Power duty and logic-level load switching, medical devices, HVAC systems, communications
Buy the Honeywell ZM50E10E01 – Reliable Micro Switch for Industrial Applications
Order Honeywell ZM50E10E01 online today to benefit from fast delivery and reliable performance. This compact switch is ideal for space-sensitive applications requiring precise ON/OFF control, with customizable actuators and certifications for worldwide use. Whether in HVAC, medical devices, or communication equipment, purchasing online ensures you get the correct configuration quickly, backed by quality and support. Upgrade your automation and control systems by adding this high-quality, versatile micro switch delivered directly to your workflow.
Buy Honeywell ZM50E10E01 now and experience unmatched reliability and versatile performance in space-constrained environments.
Frequently Asked Questions
Where can I buy Honeywell ZM50E10E01?
You can click on the BUY or RFQ button to purchase ZM50E10E01 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ZM50E10E01?
You can download the ZM50E10E01 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ZM50E10E01?
Honeywell
