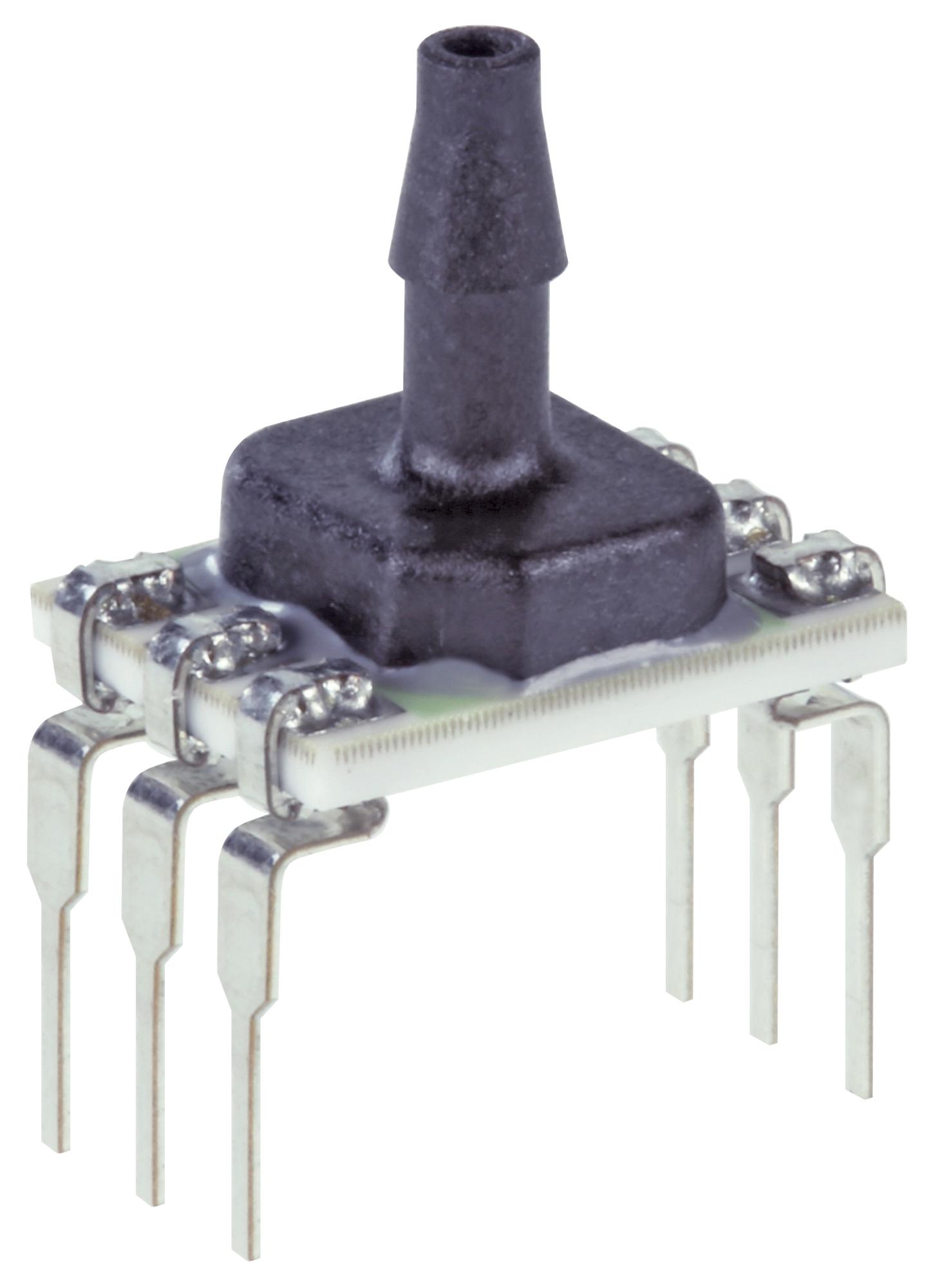

Honeywell ABPDANV015PGSA3 Board Mount Pressure Sensor
The ABP Series are compact, high-accuracy board mount pressure sensors designed for industrial, medical, and IoT applications. Offering both analog and digital outputs, these sensors provide precise pressure readings from 60 mbar to 10 bar, with built-in temperature compensation and calibration. Their small size down to 8 mm x 7 mm allows easy integration into various designs. Features include wet liquid media capability with silicone gel coating, multiple pressure ranges, and low power consumption, ideal for battery-powered systems. These sensors ensure reliable long-term stability and conform to industry standards such as ISO 9001, RoHS, and REACH.
Honeywell ABPDANV015PGSA3 Board Mount Pressure Sensor Specifications:
- Pressure Range: 60 mbar to 10 bar (6 kPa to 1 MPa, 1 psi to 150 psi)
- Output: Ratiometric analog or I2C/SPI-compatible 12-bit digital
- Supply Voltage: 3.3 Vdc or 5 Vdc
- Total Error Band: ±15 %FS
- Accuracy: ±0.25 %FSS BFSL
- Long-term stability: ±0.25 %FSS over 1000 hours at 25°C (77°F)
- Temperature Range: -40°C to 85°C (-40°F to 185°F), compensated range 0°C to 50°C (32°F to 122°F)
- Response Time: ~3 ms
- Power Consumption: 2 μA in sleep mode
- Electrical Interface: SPI or I2C, with optional temperature/output
- Pressure Port Options: Dry gases and liquid media with silicone coating
- Physical Size: As small as 8 mm x 7 mm, leadless SMT options available
- Mechanical: Burst pressures up to industry standards, IP ratings depending on enclosure
- Compliance: ISO 9001, RoHS, REACH
- Environmental: Vibration 15 g, Shock 100 g, life cycles over 1 million
- Application suitability includes medical, industrial process control, HVAC, and IoT devices
Buy the Honeywell ABP015PG – Reliable Pressure Sensors for Industrial Applications
Order Honeywell ABP015PG pressure sensor online today and enhance your systems with high accuracy, compact design, and versatile pressure ranges. Perfect for industrial, medical, and IoT applications, this sensor offers reliable digital and analog outputs, low power consumption, and long-term stability. Its small size facilitates easy integration into tight spaces, supporting various media options including dry gases and non-corrosive liquids. Don’t miss out—secure your supply now and improve your project performance with trusted Honeywell quality.
Buy Honeywell ABP015PG now and experience unmatched reliability and performance in pressure measurement for your industrial or medical systems.
Frequently Asked Questions
Where can I buy Honeywell ABPDANV015PGSA3?
You can click on the BUY or RFQ button to purchase ABPDANV015PGSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDANV015PGSA3?
You can download the ABPDANV015PGSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDANV015PGSA3?
Honeywell
