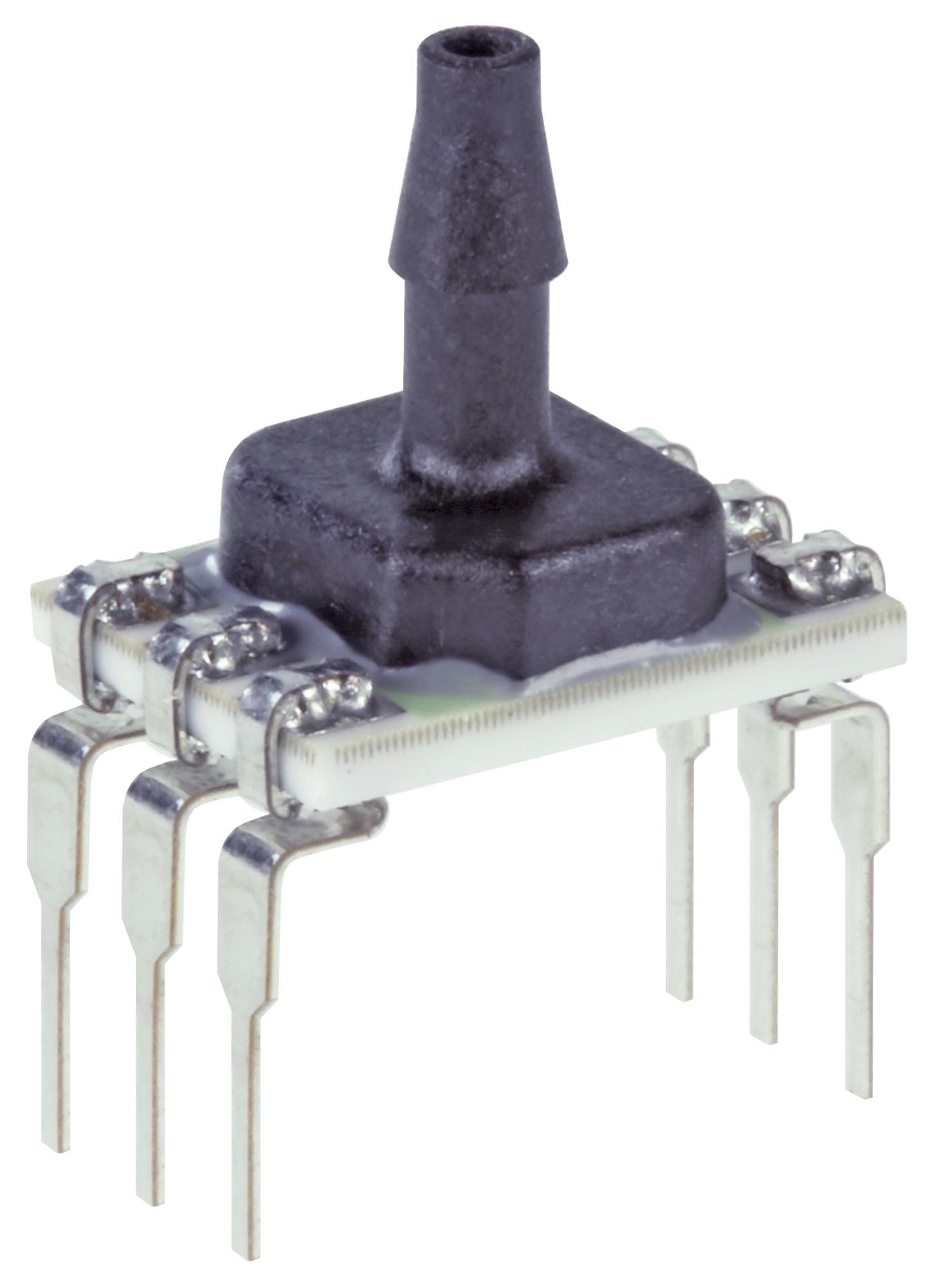

Honeywell ABPDANV030PGSA3 pressure sensor
The ABP series basic amplified pressure sensor module features a piezoresistive silicon sensor that provides a ratiometric output for accurate pressure readings across a specified full-scale pressure and temperature range. Calibrated and temperature compensated through an onboard ASIC, it accounts for sensor offset, sensitivity, temperature effects, and accuracy errors such as non-linearity, repeatability, and hysteresis. The sensor updates its analog output at approximately 1 kHz and digital output at 2 kHz. Designed and manufactured according to ISO 9001 standards, these sensors are suitable for measuring gauge and differential pressures in medical, industrial, and commercial applications, with a pressure range of 0 to 30 psi. The device incorporates proprietary Honeywell technology with industry-leading stability and accuracy, features a small form factor (as small as 8mm x 7mm), and utilizes a DIP package with a 3.3V supply. It includes SPI digital output, a single axial barbed port, silicone gel coating with diagnostics, and meets moisture sensitivity level 1 standards.
Honeywell ABPDANV030PGSA3 pressure sensor Specifications:
- Pressure Range: 0 to 30 psi
- Sensor Type: Piezoresistive silicon
- Output: Ratiometric analog and digital (SPI) 12-bit
- Update Rate: 1 kHz (analog), 2 kHz (digital)
- Calibrated over temperature range: 0°C to 50°C
- Power Supply: 3.3Vdc
- Size: As small as 8mm x 7mm
- Electrical Interface: SPI digital, single axial barbed port
- Material: Silicone gel coating with diagnostics option
- Standards: ISO 9001, Meets moisture sensitivity level 1
- Accuracy: Industry-leading stability and precision
- Compatibility: Gauge and differential pressure applications
- Technology: Proprietary Honeywell silicon sensor
- Temperature Compensation: Yes
- Error: Total Error Band +1.5%
- Long-term Stability: 0.25%FSS
Buy the Buy Honeywell ABP Series Part Number ABPDANV030PGSA3 Online
Purchase the Honeywell ABP Series pressure sensor online today and take advantage of the small form factor, high accuracy, and reliable performance for your medical, industrial, or commercial pressure measurement applications. With digital and analog outputs, proprietary technology, and comprehensive temperature compensation, this sensor ensures precise readings in gauge and differential configurations. Its industry-leading stability and advanced diagnostics make it ideal for IoT and demanding environments. Order now and enhance your system’s reliability and performance with this trusted sensing solution.
Buy Honeywell ABP Series ABPDANV030PGSA3 now and experience unmatched reliability and precision with industry-leading stability in pressure sensing.
Frequently Asked Questions
Where can I buy Honeywell ABPDANV030PGSA3?
You can click on the BUY or RFQ button to purchase ABPDANV030PGSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDANV030PGSA3?
You can download the ABPDANV030PGSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDANV030PGSA3?
Honeywell
