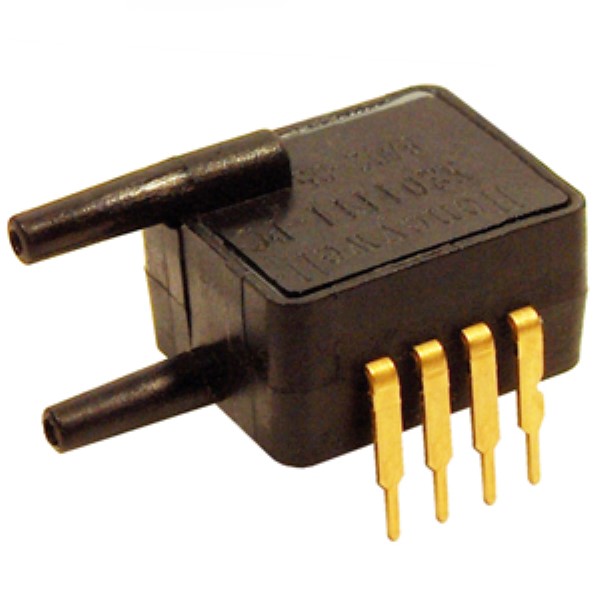

Honeywell ASDXRRX005ND7A5 Silicon Pressure Sensor
The Honeywell ASDX Series Silicon Pressure Sensors provide a highly accurate and reliable solution for pressure measurement in a wide range of industrial applications. Featuring a digital interface (I²C or SPI) and fully calibrated and temperature compensated design, these sensors offer exceptional performance and ease of integration. They are suitable for applications such as flow calibrators, ventilation monitoring, gas flow instrumentation, sleep apnea therapy equipment, barometry, pneumatic controls, and HVAC systems. The sensors are available in absolute, differential, and gage configurations, catering to diverse measurement needs. With a total error band of ±2.0% of full scale span, the ASDX Series delivers precise and consistent results.
Honeywell ASDXRRX005ND7A5 Silicon Pressure Sensor Specifications:
- Supply voltage (Vsupply) Min: -0.3
- Supply voltage (Vsupply) Max: 6.0
- Voltage to any pin: -0.3
- Digital clock frequency I2C: 100
- Digital clock frequency SPI: 50
- ESDsusceptibility: 3
- Storage temperature Min: -50
- Storage temperature Max: 125
- Lead temperature: 250
- External capacitance between Vsupply and ground: 100
- Supply voltage 3.3 Vdc: 3.0
- Supply voltage 3.3 Vdc Typ: 3.34
- Supply voltage 3.3 Vdc Max: 3.6
- Supply voltage 5.0 Vdc: 4.75
- Supply voltage 5.0 Vdc Typ: 5.04
- Supply voltage 5.0 Vdc Max: 5.25
- Supply current: 2.0
- Compensated temperature range Min: 0
- Compensated temperature range Max: 85
- Operating temperature range Min: -20
- Operating temperature range Max: 105
- Overpressure: 2Xoperating pressurerangeminimum
- Burstpressure: 3X operating pressure range minimum
- Startup time: 2.8
- Response time: 0.46
- I2C or SPI voltage level low: 0.2
- I2C or SPI voltage level high: 0.8
- Pull-upon SDA and SCL: 1
- Total error band: 2.0
- Output resolution: 12
- Humidity: 0% to 95%RH non-condensing
- Vibration: 10 G at20Hzto2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles minimum
- Pressure Ranges: 10 inches H2O to 100 psi
- Output Options: I2C or SPI digital
