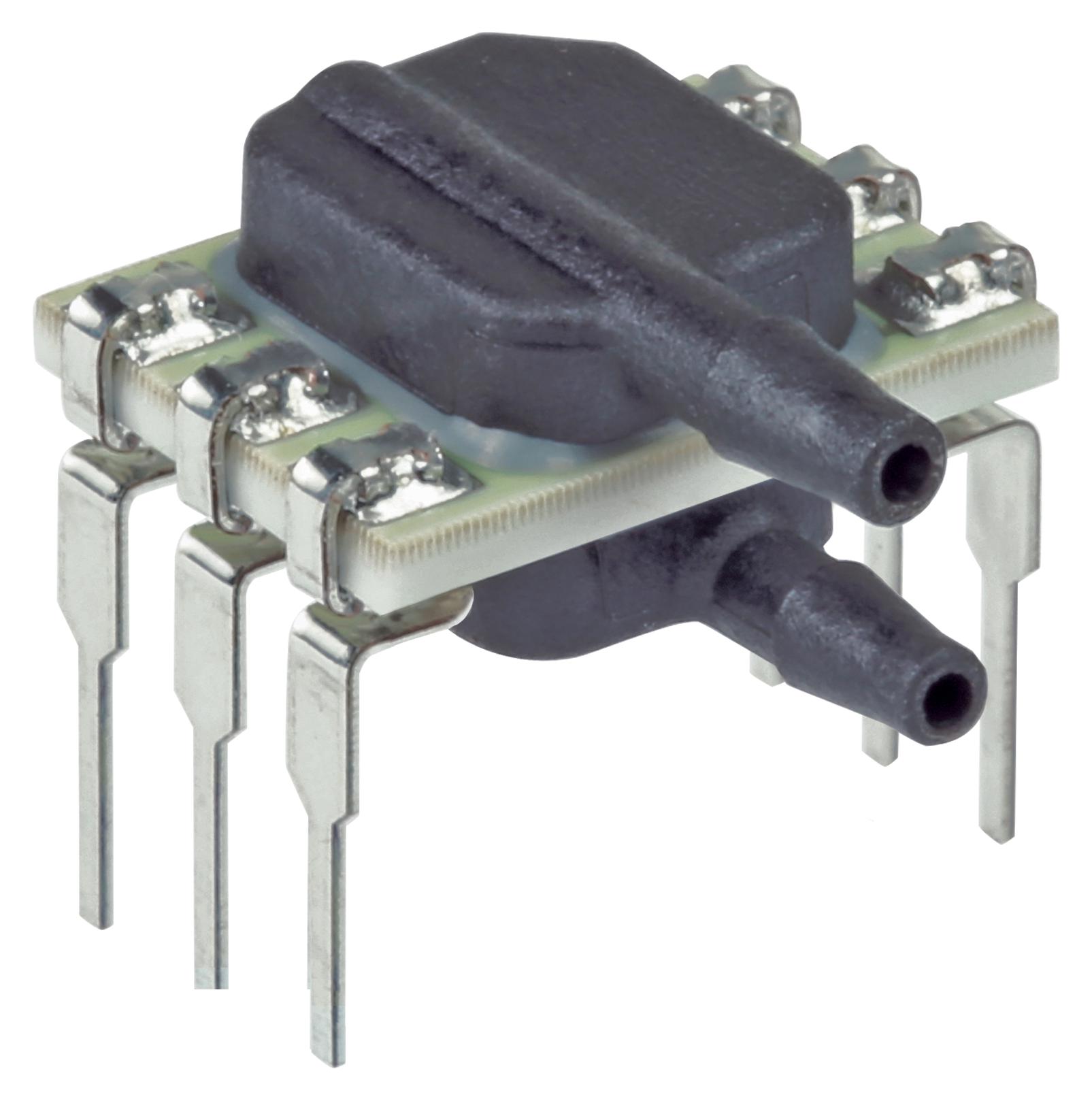

Honeywell ABPDRRV015PDSA3 Pressure Sensor
The ABP series basic amplified board mount pressure sensors are high-precision, piezoresistive silicon pressure sensors with a ratiometric output, designed to measure gauge and differential pressures within a specified full-scale range. These sensors are calibrated and temperature compensated using an onboard ASIC, ensuring accurate readings over a temperature range of 0°C to 50°C (32°F to 122°F). They feature proprietary Honeywell technology protected by multiple patents, offering industry-leading long-term stability of ±0.25% of full-scale span (FSS) and a total error band of ±1.5% FSS. Capable of measuring differential pressures up to ±15 psi, they are suitable for medical, industrial, and commercial applications. The sensors are energy-efficient, compact (as small as 8mm x 7mm), and feature a DIP package with a 3.3V supply. They provide digital SPI output, dual radial barbed ports on the same side, and are coated with silicone gel for protection, with onboard diagnostics for enhanced reliability. These sensors meet IPC/JEDEC J-STD-020D.1 moisture sensitivity Level 1 standards and are constructed with industry-leading accuracy of ±0.25% FSS BFSL and high burst pressure capabilities.
Honeywell ABPDRRV015PDSA3 Pressure Sensor Specifications:
- Measurement Range: Gage and Differential Pressure up to ±15 psi
- Output: Digital SPI compatible, 12-bit resolution
- Supply Voltage: 3.3V DC, 5V DC options available
- Accuracy: ±0.25% FSS BFSL
- Total Error Band: ±1.5% FSS
- Long-term Stability: ±0.25% FSS over 1000 hours at 25°C
- Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
- Package: Small DIP package, as small as 8mm x 7mm
- Protection: Silicone gel coating, onboard diagnostics
- Standards Compliance: IPC/JEDEC J-STD-020D.1 Level 1
- Pressure Ports: Dual radial barbed ports on the same side
- Burst Pressure Capability: Designed for high burst pressures
- Power Consumption: Very low, typical 2 μA in sleep mode
Buy the Honeywell Series ABP Pressure Sensor: ABPDRRV015PDSA3
Discover the reliable and high-precision Honeywell pressure sensor, designed for gauge and differential pressure measurement up to 15 psi. It features compact size, digital SPI output, and industry-leading stability and accuracy of ±0.25% FSS. Perfect for medical, industrial, and commercial applications, this sensor is protected by silicone gel coating and includes onboard diagnostics for enhanced reliability. With low power consumption and meeting industry standards, it is an excellent choice for precise pressure monitoring in space-constrained and demanding environments.
Order your Honeywell Series ABP ABPDRRV015PDSA3 pressure sensor today and give your projects the dependable, high-accuracy measurement they deserve.
Frequently Asked Questions
Where can I buy Honeywell ABPDRRV015PDSA3?
You can click on the BUY or RFQ button to purchase ABPDRRV015PDSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPDRRV015PDSA3?
You can download the ABPDRRV015PDSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPDRRV015PDSA3?
Honeywell
