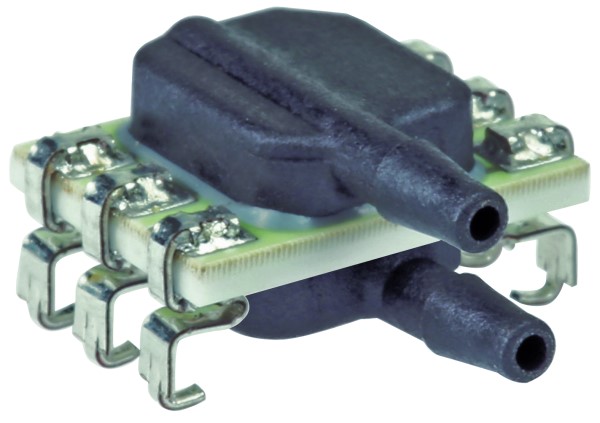

Honeywell ABPMRRN005PD2A3 High Accuracy Pressure Sensor
Honeywell's ABP Series pressure sensors utilize piezoresistive silicon technology to provide accurate and reliable pressure readings. These sensors are calibrated and temperature compensated, ensuring consistent performance across a wide range of conditions. Available with dry gas or liquid media options, they cater to diverse applications from medical devices to industrial process control. Their compact size, flexible power supply, and various output options make them ideal for integration into space-constrained and battery-powered systems.
Honeywell ABPMRRN005PD2A3 High Accuracy Pressure Sensor Specifications:
- Total Error Band: ±1.5 %FSS
- Liquid Media Option: Allows for wet/wet operation
- Pressure Range: 60 mbar to 10 bar | 6 kPa to 1 MPa | 1 psi to 150 psi
- Size: As small as 8 mm x 7 mm
- Operating Temperature Range: 0°C to 50°C [32°F to 122°F]
- Output: Ratiometric analog or I[2] C- or SPI-compatible 12-bit digital
- Power Consumption: 2 uA typical (sleep mode)
- Supply Voltage: 3.3 Vdc or 5.0 Vdc
- Moisture Sensitivity Level: 1
- Storage Temperature: -40°C to 85°C
- Humidity: 0 %RH to 95 %RH (non-condensing)
Buy the ABPMRRN005PD2A3 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell ABPMRRN005PD2A3 pressure sensor securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ABPMRRN005PD2A3?
You can click on the BUY or RFQ button to purchase ABPMRRN005PD2A3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPMRRN005PD2A3?
You can download the ABPMRRN005PD2A3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPMRRN005PD2A3?
Honeywell
