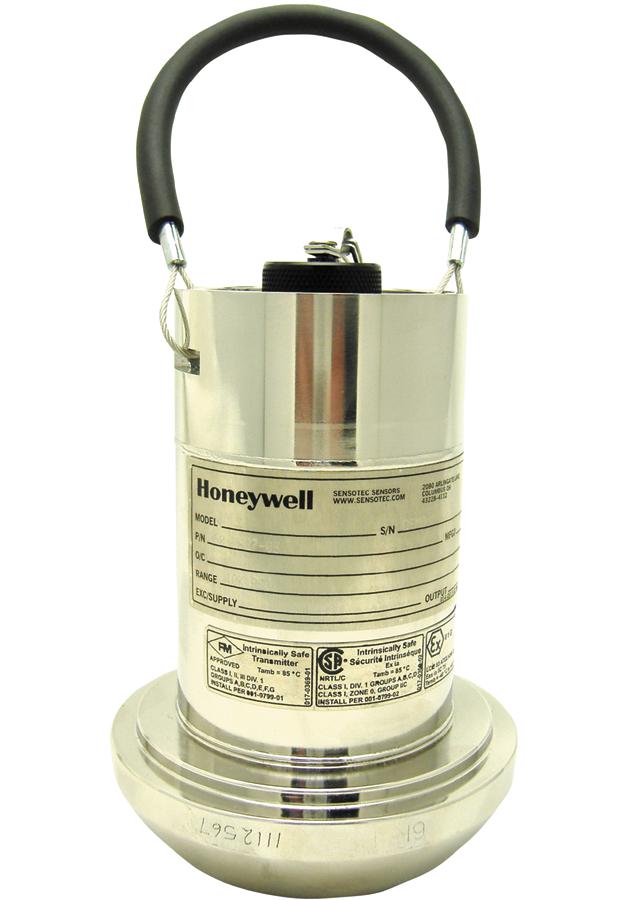

Honeywell BP425DR Pressure Sensor
Honeywell's Model 425 Wing Union/Hammer Union Pressure Sensors are robust, stainless steel devices suitable for offshore and land-based oil and gas applications. These sensors, constructed with Inconel X-750 wetted parts, feature hermetic, all-welded design ensuring leak-proof operation and durability in corrosive media. They provide high accuracy options of ±0.1% or ±0.2% BFSL, utilize 4-20 mA two-wire output, and are equipped with shock/vibration testing for field reliability. Suitable for high-pressure ranges up to 20,000 psi, they find applications in well stimulation, cementing, drilling, and other demanding environments.
Honeywell BP425DR Pressure Sensor Specifications:
- Pressure ranges: 0 to 5000 psi, 0 to 6000 psi, 0 to 10000 psi, 0 to 15000 psi, 0 to 20000 psi
- Accuracy: +0.1% or +0.2% BFSL
- Temperature Operating: -43°C to 85°C [-45°F to 185°F]
- Temperature Compensating: -34°C to 82°C [-30°F to 180°F]
- Output: 4 mA to 20 mA, two-wire
- Electrical Power: 9 Vdc to 28 Vdc
- Wetted parts: Inconel X-750
- Pressure port: Weco 1502 wing union, 51 mm (2 in) pipe, male sub end
- Housing material: 316L stainless steel
- Overload safe: 150% rated full scale pressure
- Burst overload: 250% rated pressure
- Weight: 2722 g [6 lb]
- Sealing: Hermetically sealed IP68/NEMA 6P
- Certifications: CE, CSA, ATEX
- Electrical termination: MS series compatible 4-pin stainless steel connector
- Shock and vibration tested for field performance
Buy the Honeywell BP425DR – Reliable Pressure Sensors for Industrial Applications
Purchase the Honeywell BP425DR pressure sensor online today for dependable performance in demanding industrial environments. Designed with durable Inconel wetted parts and hermetic stainless steel construction, this sensor offers high accuracy and reliability for offshore and land-based oil and gas applications. Its 4-20 mA output, wide pressure range, and certifications ensure seamless integration into your systems. Enjoy quick delivery, easy ordering, and superior sensor performance—making your projects safer, more efficient, and more precise.
Get Honeywell BP425DR today—built for high-precision and long-lasting durability in demanding oil and gas environments.
Frequently Asked Questions
Where can I buy Honeywell BP425DR?
You can click on the BUY or RFQ button to purchase BP425DR from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part BP425DR?
You can download the BP425DR datasheet or visit the Honeywell website for support.
Who is the manufacturer of BP425DR?
Honeywell
