Honeywell BZE62RN234 Medium-Duty Limit Switch

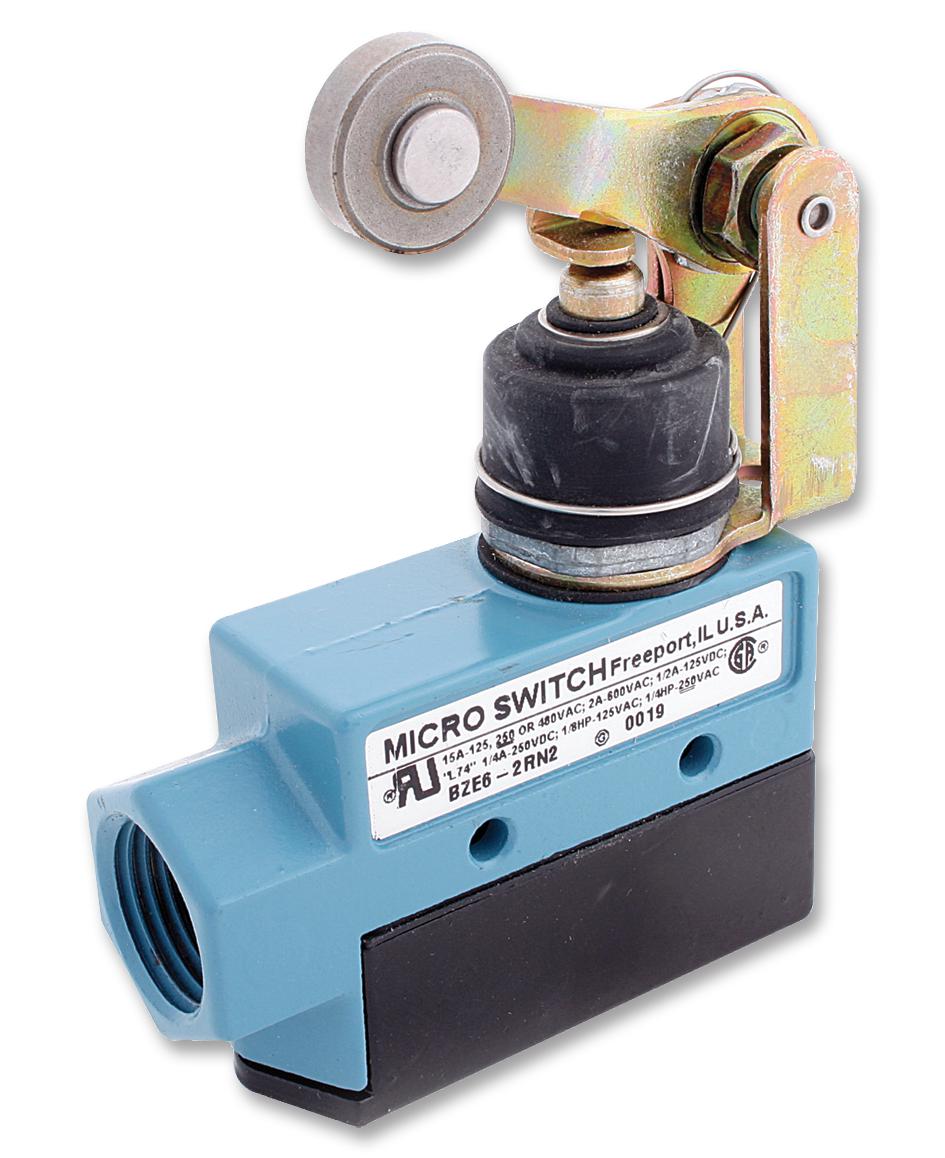

The BZE6-2RN234 is a medium-duty, single-pole double-throw switch with a top roller arm actuator and steel roller lever, designed for indoor and outdoor applications. Its zinc housing with epoxy coating provides durability against environmental factors. The sealed actuator with boot protects against liquids and particulates, suitable for machinery, conveyor systems, construction equipment, and textile machinery. It features a compact footprint for wiring access, #6 screw mounting, and a 0.5-inch NPT conduit connection. Not intended for safety or emergency stops, it ensures reliable performance in industrial and agricultural environments.
Honeywell BZE62RN234 Medium-Duty Limit Switch Specifications:
- Housing Material: Electrostatic epoxy coated zinc die-cast
- Actuator Type: Steel roller lever with boot seal
- Switching Type: SPDT - Single Pole Double Throw
- Electrical Ratings: 15A @ 125/250/480 Vac; 2A @ 600 Vac
- Operating Temperature: -32°C to 71°C [-25°F to 160°F], optional low temp -40°C [-40°F]
- Ingress Protection: NEMA 1, 3, 4, IP66 with boot seal; NEMA 1, IP40 without boot
- Connection: 0.5-14 NPT conduit thread
- Mounting: Side mount with steel roller arm actuator
- Mechanical Endurance: Up to five million cycles
- Certifications: UL, CSA, CE
Buy the Honeywell Series E6 Medium-Duty Limit Switch: BZE62RN234
Order the Honeywell BZE62RN234 limit switch online today and benefit from its robust epoxy-coated zinc housing, sealed boot for liquids and dust, and compact design. Perfect for industrial, agricultural, and construction applications, it features a reliable SPDT switching configuration rated for 15A at various voltages. Easy to install with #6 screws and a 0.5-inch NPT conduit connection, ensuring long-lasting performance and durability in demanding environments. Get yours now to enhance your machinery, conveyor systems, or heavy equipment with proven reliability.
Buy Honeywell BZE62RN234 now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy Honeywell BZE62RN234?
You can click on the BUY or RFQ button to purchase BZE62RN234 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part BZE62RN234?
You can download the BZE62RN234 datasheet or visit the Honeywell website for support.
Who is the manufacturer of BZE62RN234?
Honeywell
