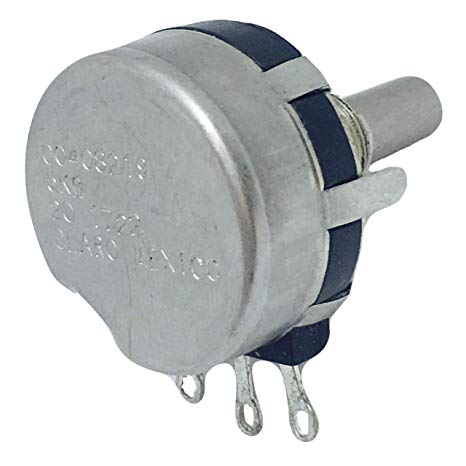

Honeywell C0408219 Conductive Plastic Potentiometer
Honeywell's C0408219 is a 2W conductive plastic potentiometer designed for versatility and reliability in industrial and commercial applications. Available in resistances from 100 Ohm to 5 MOhm and with linear, log, and antilog tapers, this potentiometer caters to a wide range of signal profile requirements. Its robust construction, nickel-plated brass shaft, and thermoset plastic housing ensure durability. Common applications include audio and visual equipment, foot pedal controls, machine controls, and welding equipment, making it a valuable component for diverse industrial systems.
Honeywell C0408219 Conductive Plastic Potentiometer Specifications:
- Maximum working voltage: 500 Vdc (linear tapers), 350 Vdc (log, reverse log tapers)
- Dielectric strength: 1000 Vac for 60 s at 1 mPa, 450 Vac for 60 s at 11,5 kPa
- Power rating: 2 W at 70 °C, derated to 120 °C
- Resistance: 100 Ohm to 5 MOhm
- Taper: Linear, log, antilog
- CRV: 3% max. total resistance (linear, log, reverse log)
- Resistance tolerance: See Order Guides
- End resistance: See Order Guides
- Linearity: ±5%
- Shaft material: Nickel-plated brass
- Shaft diameter: 6,35 mm [0.250 in]
- Bushing thread: 3/8-32 NEF-2A
- Termination: Solder lug, PC pin, fast-on
- Operating temperature: -55 °C to 120 °C
- Rotational life: Tested to 25,000 cycles
