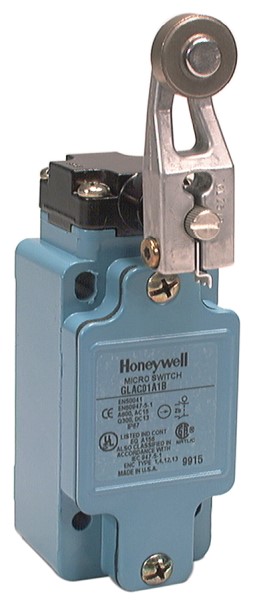

Honeywell GLAC01A1B Global Limit Switch
Honeywell’s MICRO SWITCH GLA Limit Switch Series is engineered to meet global EN50041 standards, making it suitable for a wide range of worldwide applications. Its modular design, featuring interchangeable heads, actuators, bodies, and contact blocks, allows for quick adaptation to customer needs. The robust die-cast metal housing provides excellent protection for indoor and outdoor environments requiring a degree of IP or NEMA enclosure sealing. Available with various contact options and actuators, the GLA Series is ideal for applications requiring reliable position detection and control.
Honeywell GLAC01A1B Global Limit Switch Specifications:
- Certifications: CE, CCC, CSA, UL
- Conforming to standards: IEC/EN 60947-5-1, EN45545-2
- Housing material: Electrostatic epoxy coated zinc
- Actuators: Side rotary, top pin plunger, top adjustable plunger, top roller plunger, wobble stick, cat whisker
- Termination: 0.5-14 NPT, PG 13,5, M20, G 1/2, Deutsch style 4-pin connector, Micro-change connector, Mini-change connector, Pre-cabled
- Contact options: 1NC/1NO, 2NC, 2NO, 2NC/2NO sequential, 2NC/2NO center neutral
- Contact type: Snap action, slow action break-before-make (BBM), slow action make-before-break (MBB)
- Contact material: Silver alloy (standard), gold-plated (low-energy applications)
- Utilization category: ac15, A300/A600; dc13, Q300
- Rated operational voltage (Ue): 240 Vac, 600 Vac, 250 Vdc
- Rated operational current (Ie): 3 A, 1.2 A, 0.27 A
- Thermal current (Ith): 10 A, 2.5 A
- Rated insulation voltage (Ui): 300 V; 600 V
- Rated impulse withstand voltage (Uimp): 2500 V
- Short circuit protective device: Class J fuse, rated 10A, 600 V
- Pollution degree: 3
- Sealing: IP67; NEMA/UL 1, 4, 12, and 13
- Operating temperature: -40 °C to 85 °C
- Mechanical life: Up to 15 million operations
- Vibration: 10 g conforming to IEC 68-2-6
- Shock: 50 g conforming to IEC 68-2-27
