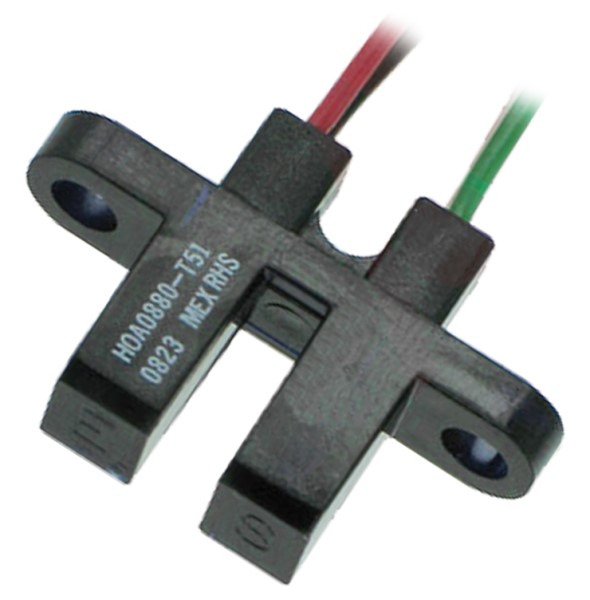

Honeywell HOA0890T51 Transmissive Position Sensor
The Honeywell HOA0890-T51 is a transmissive sensor designed for accurate position sensing in a variety of industrial applications. It combines an infrared emitting diode with an NPN silicon phototransistor, encapsulated within a durable thermoplastic housing. This sensor offers flexibility with choices in mounting configurations, detector aperture sizes, and housing materials. The HOA0890-T51 is particularly well-suited for environments where ambient light needs to be minimized and precise position resolution is critical, making it a valuable component in automated systems, security devices, and other applications requiring reliable object detection.
Honeywell HOA0890T51 Transmissive Position Sensor Specifications:
- Phototransistor Output: Yes
- Mounting Configurations: Four
- Slot Width: 0.125 in (3.18 mm)
- Detector Aperture: Choice of sizes
- Wire Leads: 24.0 in (610 mm) UL 1429
- Housing Materials: Opaque or IR transmissive
- Detector to Emitter Lead Spacing: 0.32 in (8.13 mm)
- IRED Anode: Red
- Detector Collector: White
- IRED Cathode: Black
- Detector Emitter: Green
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Soldering Temperature: 240°C (5 sec)
- Power Dissipation (IRED): 100 mW
- Reverse Voltage (IRED): 3 V
- Continuous Forward Current (IRED): 50 mA
- Collector-Emitter Voltage (DETECTOR): 30 V
- Emitter-Collector Voltage (DETECTOR): 5 V
- Power Dissipation (DETECTOR): 100 mW
- Collector DC Current (DETECTOR): 30 mA
