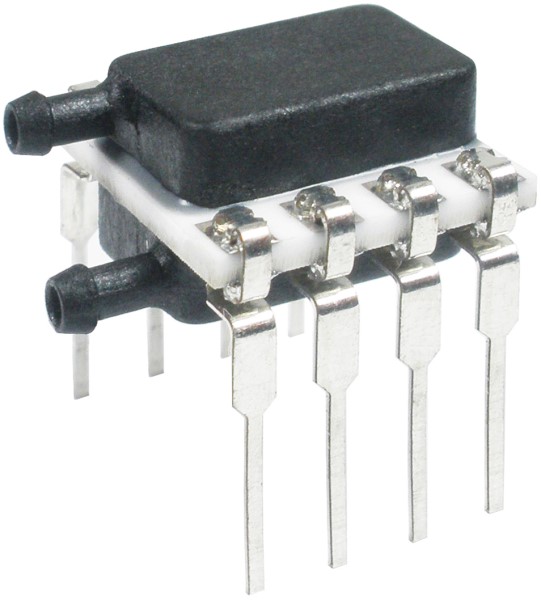

Honeywell HSCDRRN001NDAA5 Board Mount Pressure Sensor
The Honeywell TruStability HSC Series pressure sensors are designed for high accuracy and stability in a compact board mount package. Utilizing piezoresistive silicon technology, these sensors provide ratiometric analog or digital output, fully calibrated and temperature compensated for exceptional performance. They are suitable for a wide range of applications including industrial automation, medical devices, and HVAC systems, where precise pressure measurement is critical. The sensors' modular design and flexible options simplify integration, while their REACH and RoHS compliance ensure environmental responsibility.
Honeywell HSCDRRN001NDAA5 Board Mount Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output Type: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 Level 1
- Burst Pressure: High
- Working Pressure Range: Allows use above calibrated range
- Stability: Best in class long-term stability
- Power Consumption: Less than 10 mW (typical)
- Media Compatibility: Non-corrosive, non-ionic gases and liquids (above 40 mbar)
Buy the HSCDRRN001NDAA5 HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRN001NDAA5 pressure sensor securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRN001NDAA5?
You can click on the BUY or RFQ button to purchase HSCDRRN001NDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRN001NDAA5?
You can download the HSCDRRN001NDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRN001NDAA5?
Honeywell
