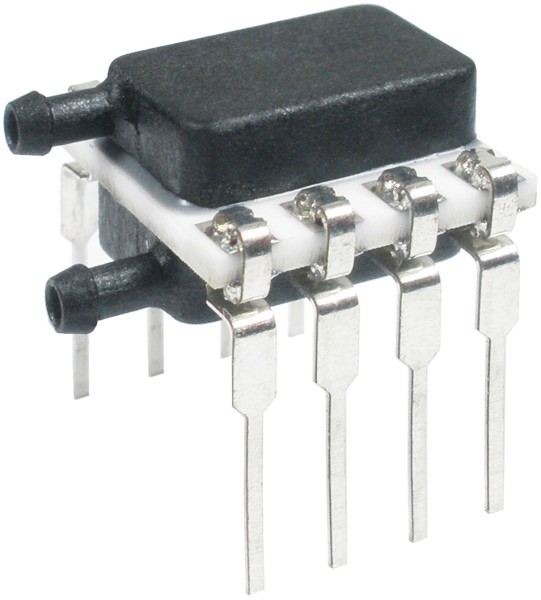

Honeywell HSCDRRN004NDAA5 TruStability Pressure Sensor
The Honeywell TruStability HSC Series pressure sensors are designed for high accuracy and stability in a compact board mount package. These sensors utilize piezoresistive silicon technology and incorporate an on-board ASIC for calibration and temperature compensation, ensuring reliable performance across a wide temperature range. They are suitable for applications requiring absolute, gage, or differential pressure measurements in various industrial settings, including HVAC, medical devices, and process control systems. The sensors' modular design and flexible options simplify integration and reduce system design complexity.
Honeywell HSCDRRN004NDAA5 TruStability Pressure Sensor Specifications:
- Full Scale Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output Type: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 MSL 1
- Burst Pressure: High
- Working Pressure Range: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Stability: Industry-leading long-term stability minimizes system calibration needs
- Power Consumption: Less than 10 mW (typical)
Buy the HSCDRRN004NDAA5 HONEYWELL TruStability Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRN004NDAA5 pressure sensor securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRN004NDAA5?
You can click on the BUY or RFQ button to purchase HSCDRRN004NDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRN004NDAA5?
You can download the HSCDRRN004NDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRN004NDAA5?
Honeywell
