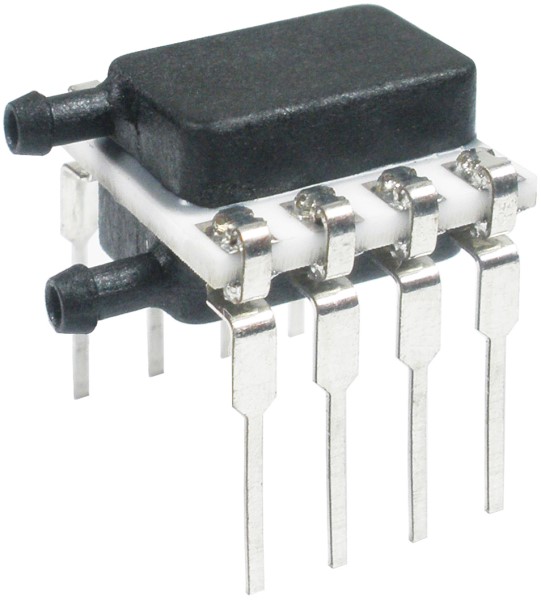

Honeywell HSCDRRN010MDSA3 High Accuracy Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, calibrated and temperature compensated using an on-board ASIC. Suitable for absolute, gage, or differential pressure measurements, these sensors are ideal for applications requiring reliable pressure sensing in various industrial and commercial environments. They are designed and manufactured according to ISO 9001 standards and offer flexibility with package styles, pressure ports, and options.
Honeywell HSCDRRN010MDSA3 High Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Compliance: REACH and RoHS compliant
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 Level 1
- Burst Pressure: High
- Working Pressure Ranges: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Stability: Minimizes system calibration needs, improves system performance, and supports system uptime
Buy the HSCDRRN010MDSA3 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRN010MDSA3 pressure sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRN010MDSA3?
You can click on the BUY or RFQ button to purchase HSCDRRN010MDSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRN010MDSA3?
You can download the HSCDRRN010MDSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRN010MDSA3?
Honeywell
