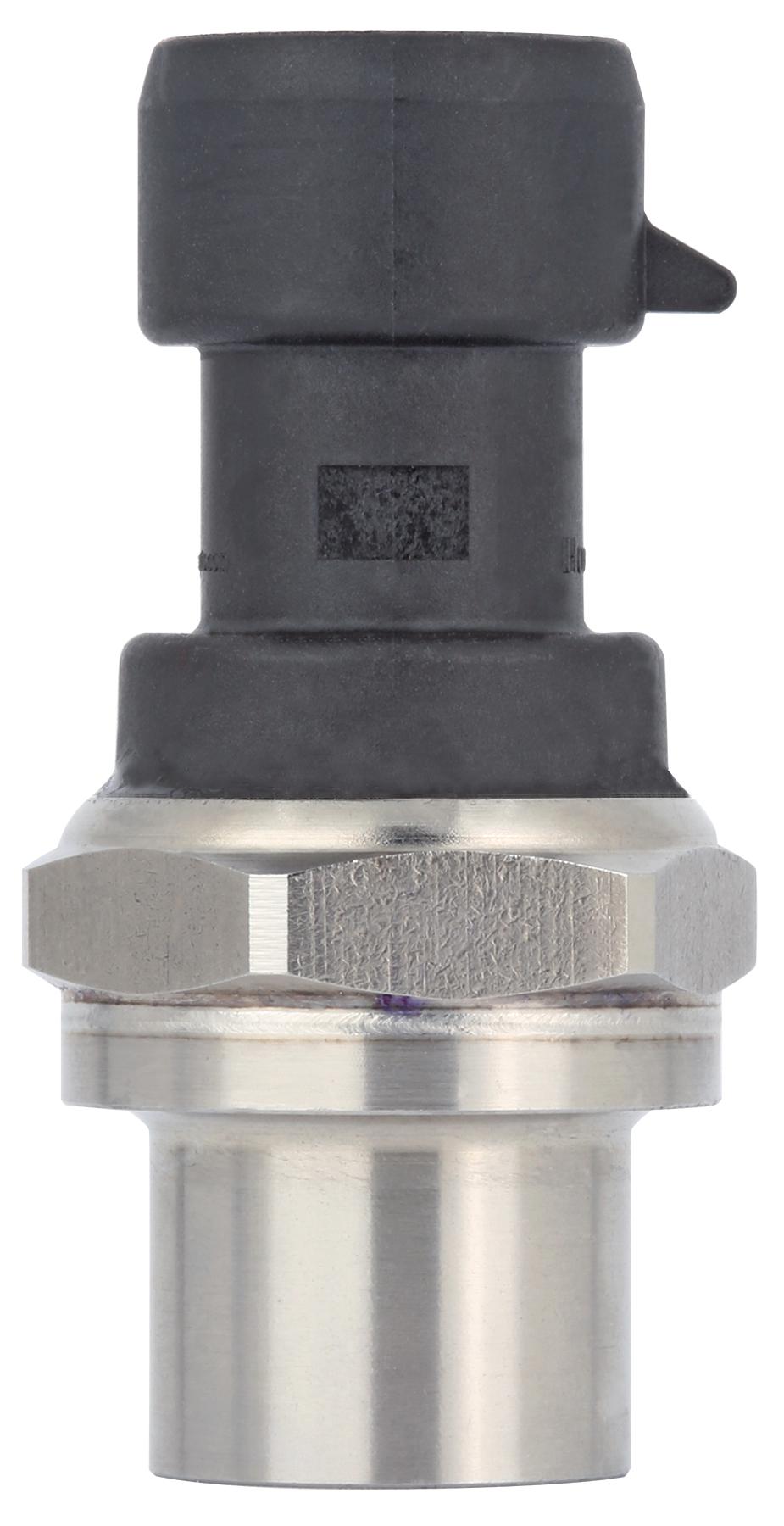

Honeywell MIPAF1XX250PSAAX Media Isolated Pressure Transducer
The Heavy Duty Media-Isolated Pressure Transducer from the MIP Series offers robust stainless steel construction with media isolation, suitable for aggressive fluids and water. It features industry-leading accuracy of 0.15% BFSL, a Total Error Band of ±1%, and operates reliably within -40°C to 125°C. Its hermetically welded design ensures durability in harsh environments, supporting a wide pressure range from 1 bar to 60 bar. The device provides ratiometric 0.5 Vdc to 4.5 Vdc output, high burst pressure of 207 bar, and is certified for NSF/ANSI/CAN 61 standards, making it ideal for industrial, water, and process applications.
Honeywell MIPAF1XX250PSAAX Media Isolated Pressure Transducer Specifications:
- Pressure Range: 1 bar to 60 bar (15 psi to 870 psi)
- Operating Temperature: -40°C to 125°C
- Total Error Band: ±1% FSS (up to 40.75% FSS over temperature)
- Accuracy: ±0.15% BFSL
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc
- Supply Voltage: 5.0 Vdc to 10.25 Vdc
- Burst Pressure: 207 bar (3000 psi)
- External Seal: Nitrile (-30°C to 100°C)
- Ingress Protection: IP67
- Material: Stainless steel 304L port, 316L diaphragm
- Shock: 100 G
- Vibration: 20 G
- EMC Ratings: CE Conformity, radiated immunity 100 V/m
- Life: >10 million pressure cycles
Buy the Honeywell Series MIP250PSAAX Media Isolated Pressure Transducer: Part Number MIPAF1XX250PSAAX
Enhance your system with Honeywell's durable Media Isolated Pressure Transducer, offering high accuracy, wide pressure range of 1 to 60 bar, and robust stainless steel construction. Suitable for aggressive fluids and water, it features hermetically welded design for harsh environments. With a Total Error Band of just 1% and certified for NSF/ANSI/CAN 61, it guarantees reliability in industrial, water treatment, and process control applications. Order online now for swift delivery and dependable measurement performance.
Order your Honeywell SeriesMIP250PSAAX heavy-duty pressure transducer today and ensure reliable performance in tough industrial environments.
Frequently Asked Questions
Where can I buy Honeywell MIPAF1XX250PSAAX?
You can click on the BUY or RFQ button to purchase MIPAF1XX250PSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part MIPAF1XX250PSAAX?
You can download the MIPAF1XX250PSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of MIPAF1XX250PSAAX?
Honeywell
