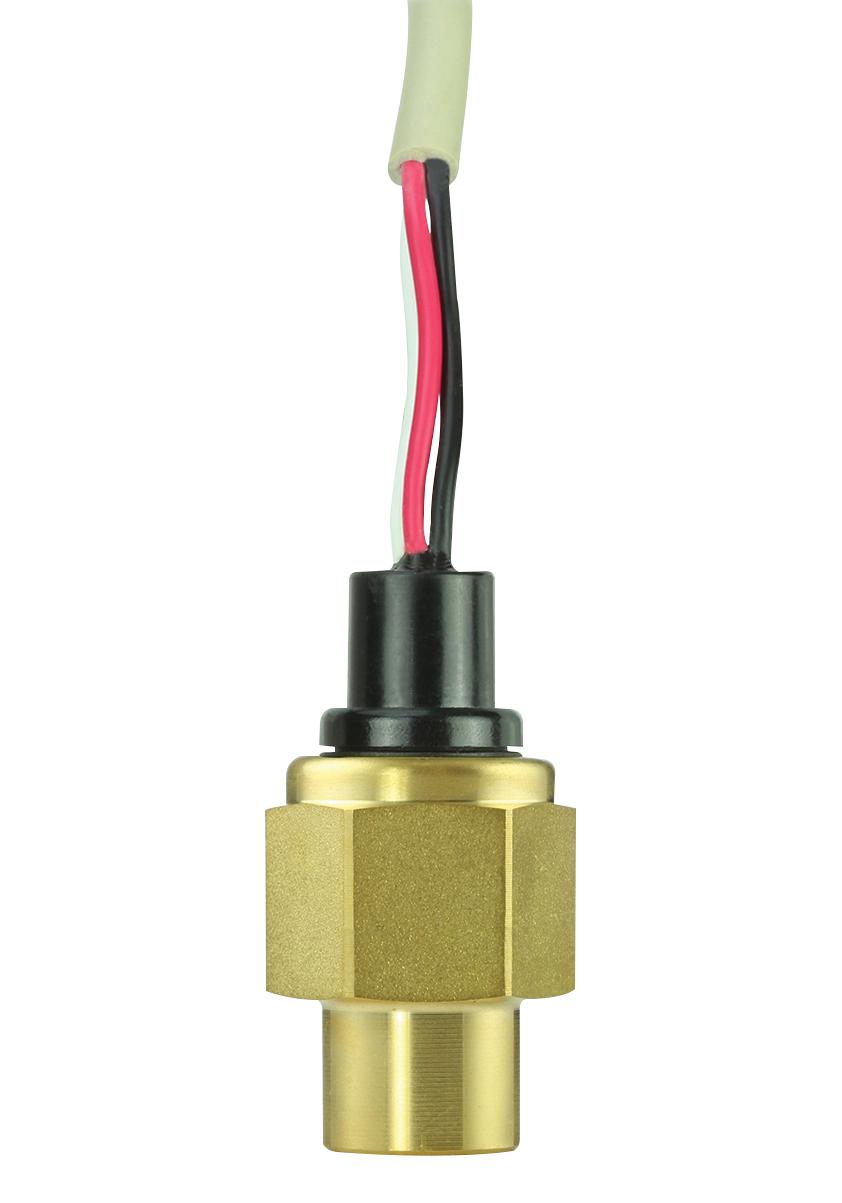

Honeywell PX3MF1BS020BSAAX Heavy Duty Pressure Sensor
Honeywell’s PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology with ASIC signal conditioning, housed in brass with electrical connections via Metri-Pack 150 or cable harness. Fully calibrated and temperature compensated from -40 °C to 125 °C, these transducers operate with a total error band of +1.0 %FSS from -20 °C to 85 °C. They are resistant to high insulation voltages, electromagnetic interference, freeze/thaw cycles, and are compatible with various media including refrigerants, oils, and water. Suitable for industrial HVAC, refrigerant monitoring, and hydraulic systems, they feature robust environmental ratings, multiple port types, and diagnostics mode options.
Honeywell PX3MF1BS020BSAAX Heavy Duty Pressure Sensor Specifications:
- Pressure range: 1 to 50 bar | 15 to 700 psi (absolute and sealed gage)
- Housing material: Brass (C36000)
- Port types: Threaded, tube, Schrader, G1/4, NPT, M12x1.5, 1/4-18 NPT
- Electrical connection: Metri-Pack 150, cable harness (various lengths and types)
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Temperature range: -40°C to 125°C [-40°F to 257°F]
- Calibration: Fully calibrated, temperature compensated
- Total Error Band: +1.0 %FSS from -20°C to 85°C
- Ingress protection: IP67 (Metri-Pack), IP69K (harness)
- Response time: <2 ms
- Electrical ratings: Supply voltage 3.3 Vdc or 5 Vdc, current consumption max 3.5 mA
- Dielectric strength: AC1500V for 1 min, Insulation resistance >100 MΩ
- Environmental: Shock 100 G, Vibration 20 G sweep, freeze/thaw >6 cycles
- Media compatibility: Refrigerants R410A, R134A, R448A, petroleum oils, hydraulic fluids, water
- Certifications: RoHS, REACH, CE
- Diagnostics: Optional mode for internal/external fault detection
Buy the Honeywell PX3-50 Heavy Duty Pressure Transducer – Reliable Pressure Sensor for Industrial Applications
Order the Honeywell PX3-50 Heavy Duty Pressure Transducer online today for reliable and precise pressure measurement in HVAC, refrigeration, hydraulic, and industrial systems. This rugged device offers temperature compensation, full calibration, and multiple port options to ensure seamless integration and durability. With proven resistance to environmental stresses like freeze/thaw cycles, EMI, and high insulation voltages, it provides dependable performance under demanding conditions. Perfect for maintenance technicians, engineers, and industrial operators seeking high accuracy and robust construction, available for quick online purchase today.
Buy Honeywell PX3-50 pressure transducer now and experience unmatched durability and precise measurement performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Honeywell PX3MF1BS020BSAAX?
You can click on the BUY or RFQ button to purchase PX3MF1BS020BSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3MF1BS020BSAAX?
You can download the PX3MF1BS020BSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3MF1BS020BSAAX?
Honeywell
