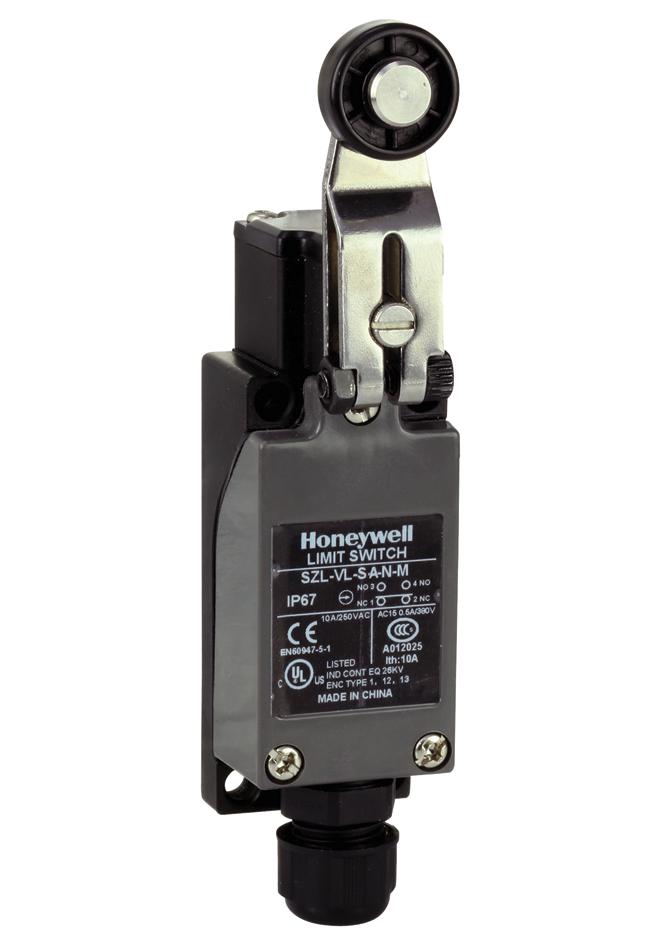

Honeywell SZLVLSANM Miniature Industrial Limit Switch
The SZL-VL-S Series miniature industrial limit switch is designed for compact spaces, featuring IP67 sealing for water immersion protection and robust environmental ratings. With a die-cast metal housing, glass-filled thermoplastic cover, snap-action contacts, and a variety of actuators including rollers, plungers, and wobble options, this switch offers reliable performance in demanding environments. Suitable for automotive, machinery, conveyor systems, and protective applications, it supports high electrical ratings, mechanical longevity, and certification compliance for global industrial use.
Honeywell SZLVLSANM Miniature Industrial Limit Switch Specifications:
- Housing material: Die-cast metal with glass-filled thermoplastic cover
- Sealing: IP67, NEMA 1, 12, 13
- Approvals: CCC, CE, cULus
- Contacts: Snap-action, positive-opening (side rotary only), silver alloy
- Electrical ratings: AC-15 A300 (380 Vac/0.5 A), DC-13 Q300 (220 Vdc/0.05 A)
- Thermal current: 10 A/250 Vac
- Initial contact resistance: < 25 mOhm
- Insulation resistance: >100 MOhm at 500 Vde
- Impulse voltage: 2500 Vde
- Dielectric voltage: 1890 Vac
- Leakage current: <10 mA
- Environmental rating: IP67, pollution degree 3
- Operating temperature: -20°C to 70°C
- Humidity: 95% RH
- Shock: 30 G
- Vibration: 10 G, 10 Hz to 55 Hz
- Mechanical life: 10 million cycles
- Electrical life: 0.5 million cycles
- Operating speed: 0.05 mm/s to 2 m/s
- Operating frequency: Mechanical 120 ops/min, Electrical 30 ops/min
- Weight: 120g to 150g
Buy the Buy Honeywell SZL-VL-S Series Limit Switch Part Number SZLVLSANM Online
Purchase the Honeywell SZL-VL-S Series limit switch online today for dependable, sealed performance in demanding industrial environments. Its compact design fits space-restricted applications, offering versatile actuators and high electrical ratings. Certified globally, it’s suitable for machinery, conveyor systems, automotive, and safety applications. With IP67 sealing, snap-action contacts, and long mechanical and electrical life, this switch ensures durable operation in harsh conditions. Order now and benefit from fast shipping and expert support for your industrial needs.
Get Honeywell SZL-VL-S limit switch today—rugged, IP67 sealed for reliable performance in space-constrained industrial applications.
Frequently Asked Questions
Where can I buy Honeywell SZLVLSANM?
You can click on the BUY or RFQ button to purchase SZLVLSANM from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZLVLSANM?
You can download the SZLVLSANM datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZLVLSANM?
Honeywell
