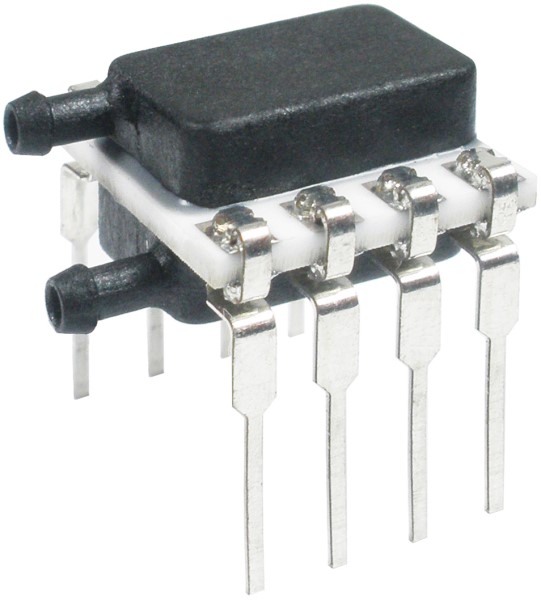

Honeywell HSCDRRN005NDAA5 High Accuracy Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, calibrated and temperature compensated using an on-board ASIC. Suitable for absolute, gage, or differential pressure measurements in non-corrosive environments, this sensor is ideal for applications requiring precise pressure monitoring and control. Its small size, low power consumption, and modular design simplify integration and enhance system performance.
Honeywell HSCDRRN005NDAA5 High Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Minimizes system calibration needs
- TEB Components: Offset, Full Scale Span, Pressure Non-Linearity, Pressure Hysteresis, Pressure Non-Repeatability, Thermal Effect on Offset, Thermal Effect on Span, Thermal Hysteresis
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 Level 1
- Burst Pressure: High burst pressures promote system reliability
- Working Pressure Ranges: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Power Consumption: Less than 10 mW (typical)
Buy the HSCDRRN005NDAA5 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRRN005NDAA5 pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRRN005NDAA5?
You can click on the BUY or RFQ button to purchase HSCDRRN005NDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRRN005NDAA5?
You can download the HSCDRRN005NDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRRN005NDAA5?
Honeywell
