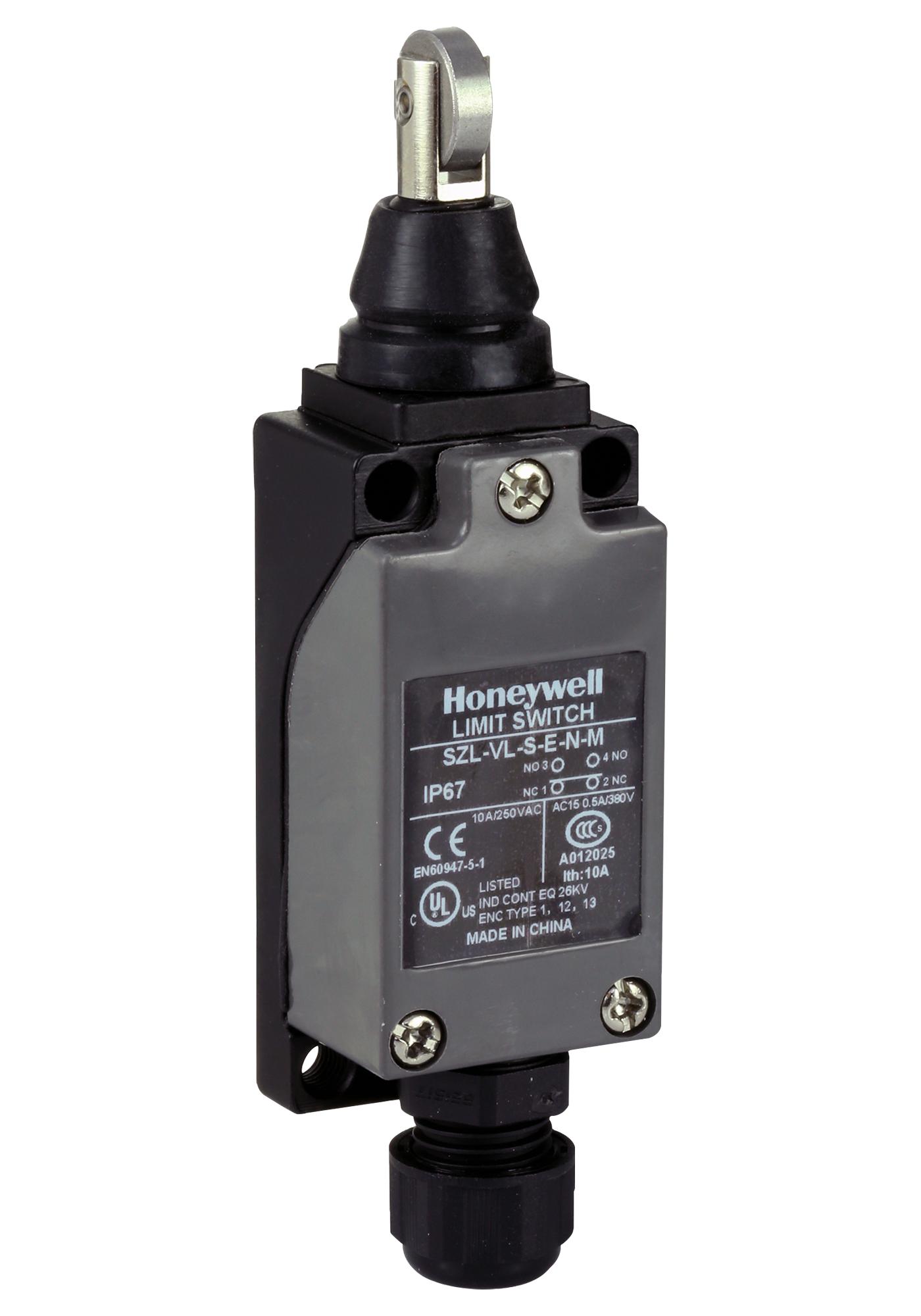

Honeywell SZLVLSENM Mini Limit Switch
The limit switch features a rugged die-cast metal housing with a flame-retardant thermoplastic cover, IP67 water immersion protection, and snap-action contacts. Suitable for industrial environments, it supports heavy electrical loads with ratings of AC-15 A300 at 380V and DC-13 Q300 at 220V. Its operating temperature ranges from -20°C to 70°C, with a mechanical life of 10 million cycles. Its diverse actuator options include side rotary, adjustable levers, pins, wobble springs, and coil springs, making it adaptable to various industrial applications such as machinery, lifts, conveyor systems, and safety doors.
Honeywell SZLVLSENM Mini Limit Switch Specifications:
- Housing Material: Die-cast metal with flame-retardant thermoplastic cover
- Sealing: IP67, suitable for immersion up to 1 meter
- Contacts: Snap-action, positive-opening (side rotary only)
- Contact Material: Silver alloy
- Electrical Ratings: AC-15 A300 at 380V, DC-13 Q300 at 220V
- Operating Temperature: -20°C to 70°C
- Mechanical Life: 10 million cycles
- Electrical Life: 0.5 million cycles
- Operating Speed: 0.05 mm/s to 2 m/s
- Operating Frequency: Mechanical 120 ops/min, Electrical 30 ops/min
- Weight: 120g to 150g
- Shock Resistance: 30 G, IEC 60068-2-27
- Vibration Resistance: 10 G, 10 Hz to 55 Hz, 0.75 mm amplitude
- Humidity Resistance: 95% RH
Buy the Honeywell Series SZL-VL-S Mini Limit Switch: SZLVLSENM
Enhance your industrial automation with the Honeywell Mini Limit Switch from the SZL-VL-S series. Designed for space-constrained applications, it features IP67 sealing for water immersion protection, snap-action contacts, and a robust die-cast housing. Compatible with diverse actuators, it can handle heavy electrical loads with ratings of AC-15 and DC-13. Suitable for machinery, lifts, conveyor systems, and safety doors, ensuring reliable operation with a mechanical life of 10 million cycles. Buy online now for dependable, high-performance limit switching.
Get Honeywell SZL-VL-S today—built for precision and long-lasting durability in rugged industrial environments.
Frequently Asked Questions
Where can I buy Honeywell SZLVLSENM?
You can click on the BUY or RFQ button to purchase SZLVLSENM from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZLVLSENM?
You can download the SZLVLSENM datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZLVLSENM?
Honeywell
