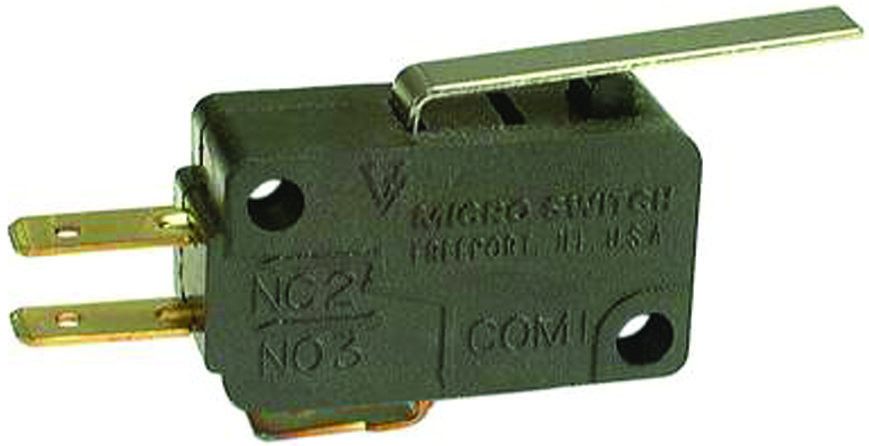

Honeywell V15H16CZ100A02K Micro Switch
The V15 Series MICRO SWITCH™ is an electromechanical switch designed for enhanced reliability and cost-effective performance. It is suitable for applications where low-cost-of-failure and minimal replacement or servicing costs are required. The switch supports operating forces of 100g or more and electrical ratings ranging from 16A to 22A. It offers a variety of standard options, including different actuators, electrical ratings, and operating forces. The V15 Series is ideal for use in appliances, vending machines, gaming equipment, water heaters, and industrial control systems. It is rated for 10,000 to 50,000 full-load operations or up to 5 million mechanical operations, with current ratings of 10A to 26A. The switch is certified with UL, CSA, cUL, ENEC, and CQC approvals, ensuring reliable performance across different conditions and extended service life.
Honeywell V15H16CZ100A02K Micro Switch Specifications:
- Operating force: 0.81 N (81 g) to 16 N (1600 g)
- Electrical ratings: 10A to 26A, 125V or 250V AC, 30V DC
- Certifications: UL, CSA, cUL, ENEC, CQC
- Operation cycles: 10,000 to 50,000 full load, up to 5 million mechanical
- Actuator types: pin plunger, roller lever, short lever, long lever
- Temperature range: -25°C to 160°C depending on model
- Housing material: thermoplastic polyester
- Housing types: flat, fully flat, fully flat with screw terminals
- Mounting holes: 2.90 mm (Metric), 0.11 in (US)
- Contact material: silver, gold-plated
- Connection: quick connect, solder terminal, PCB mounting options
Buy the Honeywell V15H16CZ100A02K – Reliable Micro Switch for Industrial Applications
Get your Honeywell V15H16CZ100A02K micro switch now online to benefit from reliable, certified performance across various industrial and appliance applications. This high-quality switch boasts multiple actuator options, extensive electrical ratings, and certifications such as UL, CSA, ENEC, and CQC. Designed for high durability, with up to 50,000 operating cycles and a temperature range up to 160°C, it ensures dependable operation in demanding environments. Purchase today to enhance your equipment’s safety, efficiency, and longevity with trusted global standards.
Order your Honeywell Series V15H16CZ100A02K durable micro switch today and ensure long-lasting, certified performance in your industrial systems.
Frequently Asked Questions
Where can I buy Honeywell V15H16CZ100A02K?
You can click on the BUY or RFQ button to purchase V15H16CZ100A02K from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V15H16CZ100A02K?
You can download the V15H16CZ100A02K datasheet or visit the Honeywell website for support.
Who is the manufacturer of V15H16CZ100A02K?
Honeywell
