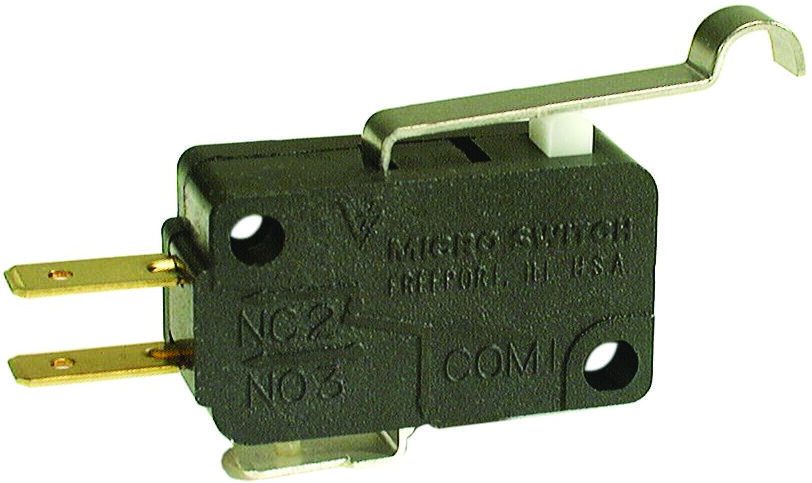

Honeywell V71C17D8263 Miniature Control Switch
The V7-1C17D8-263 is a single-pole double-throw miniature switch with a simulated roller lever actuator, quick-connect terminals, and a robust thermoplastic housing. It is ideal for ON/OFF control, limit detection, and presence sensing in harsh environments, capable of switching loads from less than 0.1A to 25A. Designed for high reliability, long life up to 10 million cycles, and versatile mounting options, it is suitable across industrial, HVAC, medical, and electronics applications, providing precise operation and excellent durability under extreme temperature conditions.
Honeywell V71C17D8263 Miniature Control Switch Specifications:
- Contact Type: SPDT (Single Pole Double Throw)
- Actuator: Simulated roller lever
- Electrical Ratings: 0.1 A up to 25 A, 125 Vac and 250 Vac
- Operating Force: 0.25 N to 3.9 N (15 g to 397 g)
- Operating Temperature: -40 °C to 85 °C (options for 175 °C)
- Mechanical Life: Up to 10 million cycles
- Housing Material: High strength thermoplastic
- Contact Material: Silver, gold-plated, or gold alloy
- Mounting Type: Quick connect, PCB, or other options
- Certification: CSA, ENEC, UL, RoHS compliant
- Dimensions: Varies by model, typical actuator length approximately 14.7 mm to 20.57 mm, terminal sizes include 0.25 in x 0.032 in
- Application: Limit switches, presence detection, motor control, HVAC, medical devices
Buy the Honeywell V7-1C17D8-263 – Reliable Switch for Industrial Applications
Purchase Honeywell V7-1C17D8-263 online today—designed for industrial and consumer electronics demanding high reliability. This miniature switch with a roller lever actuator offers long life cycles up to 10 million cycles, versatile mounting options, and high-performance electrical ratings from 0.1A up to 25A for power switching. Suitable for limit detection, presence sensing, and control in harsh environments, it ensures precise operation, durability, and safety with UL, CSA, ENEC certifications. Shop now for dependable, high-quality switches for your application needs.
Get Honeywell V7-1C17D8-263 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Honeywell V71C17D8263?
You can click on the BUY or RFQ button to purchase V71C17D8263 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V71C17D8263?
You can download the V71C17D8263 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V71C17D8263?
Honeywell
