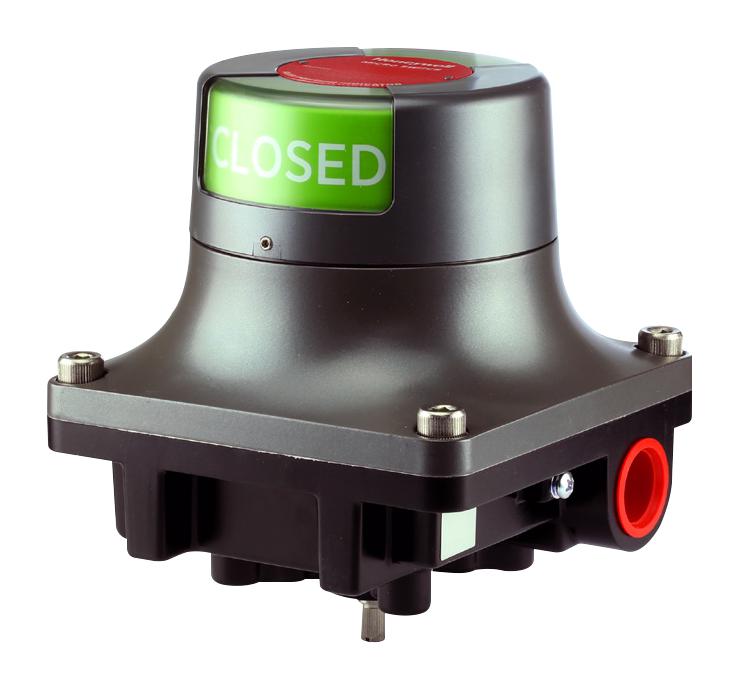

Honeywell VPX1E2ABBY2A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator is designed for hazardous outdoor environments, featuring rugged die-cast aluminum housing and weather sealing that meets NEMA 4X and IP66/IP67 standards. It is certified for explosion-proof, flame-proof, and intrinsically safe applications (optional), with global agency approvals including ATEX, IECEx, and UL. The series supports various operating temperatures from -40°C to 80°C, ensuring reliability in demanding conditions. It is compatible with electromechanical switches and proximity sensors, providing high durability for up to 500,000 actuations, making it suitable for diverse industrial and chemical applications worldwide.
Honeywell VPX1E2ABBY2A2B Valve Position Indicator Specifications:
- Housing Material: Aluminum with protective paint finish
- Housing Size: 152.3 mm H x 140 mm W x 140 mm D
- Sealing: NEMA 4, 4X, 6, and 13; IP66/IP67
- Operating Temperature: -40°C to 80°C depending on version
- Agency Approvals: cULus, ATEX, IECEx; coming soon: NEPSI, KOSHA
- Explosion Proof Designations: Division 1, Class I, II, Groups B, C, D, E, F, G
- Visual Indicator: Multiple colors and angles, visible from all directions
- Electrical Ratings: 15 A 150 Vac (UL), 16 A 250 Vac (CE)
- Mechanical Endurance: 500,000 cycles
- Safety Integrity Level: SIL 3 (IEC 61508), MCTF: 500,000 cycles
- Operating Torque: Max 0.5 Nm (electromechanical), 1.2 Nm (spring return)
- Max Travel: 95° in either direction
- Shock: 50 g, IEC 60068-2-27
- Vibration: 10-500 Hz, IEC 60068-2-6
- Weight: Approximately 2.4 kg
Buy the Buy Honeywell Valve Position Indicator Part Number VPX1E2ABBY2A2B Online
Purchase the Honeywell VPX Series Valve Position Indicator online today for robust performance in hazardous outdoor conditions. With certifications like ATEX, IECEx, and UL, it provides explosion-proof and intrinsically safe options for wide industrial applications. Its weather-sealed aluminum housing ensures durability against rain, wind, and dust, while supporting up to 500,000 actuations. Ideal for chemical plants, oil fields, and harsh environments, this indicator guarantees precise operation, safety compliance, and long-term reliability for professionals seeking top-quality hazardous area equipment.
Buy Honeywell VPX1E2ABBY2A2B valve position indicator now and ensure reliable, Explosion-proof operation in hazardous outdoor environments.
