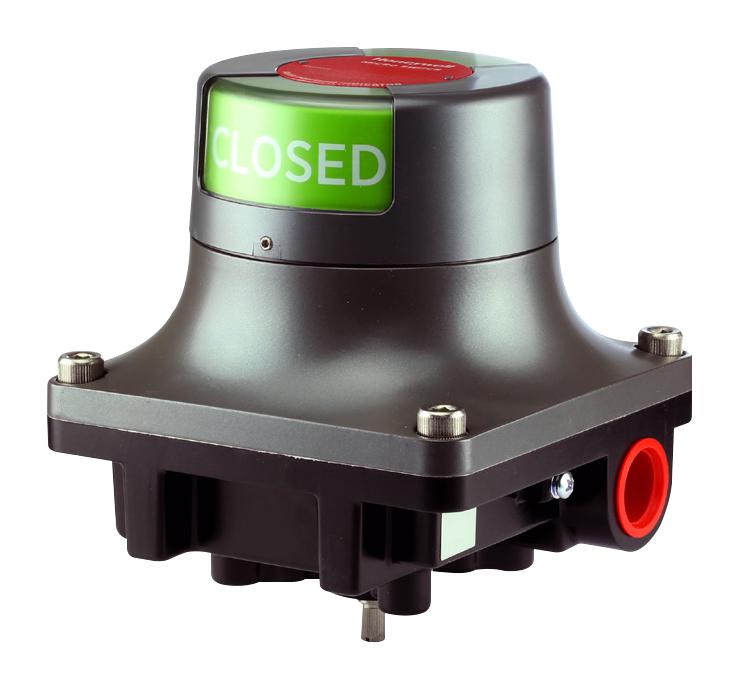

Honeywell VPX1E2ABBY3A2B Valve Position Indicator
The Valve Position Indicator VPX Series is designed for outdoor hazardous environments, featuring rugged aluminum housings with weather sealing for NEMA 4X protection. Certified for explosion-proof and intrinsically safe applications, it includes versions with electromechanical and proximity switches, suitable for high safety standards like SIL 3. The product withstands temperatures from -40°C to 80°C, operates reliably up to 500,000 cycles, and is suitable for industries such as oil and gas, petrochemical, chemical, and water treatment. Its global approvals include ATEX, IEC Ex, CE, and UL/CSA. The series offers multiple configurations for precise valve position monitoring in harsh conditions.
Honeywell VPX1E2ABBY3A2B Valve Position Indicator Specifications:
- Housing Material: Aluminum with protective paint finish
- Housing Size: 152.3 mm H x 140 mm W x 140 mm D
- Operating Temperature: -40°C to 80°C
- Sealing Standards: NEMA 4, 4X, 6, 13; IEC IP66, IP67
- Agency Approvals: cULus, ATEX, IECEx, CE, pending NEPSI and KOSHA
- Explosion-proof design: North America Division 1, Class I, Groups B, C, D; ATEX I 2G, 12 D
- Hazardous Area Ratings: Ex db IIC T6 Gb, Ex tb IIIC T85°C Db, Ta -40°C to +50°C / +60°C
- Intrinsically Safe (IS): Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da, Ta -40°C to 80°C
- Electrical Ratings: 15 A 150 Vac (UL), 16 A 250 Vac (CE), Proximity: 8.2 V, <1 mA current
- Mechanical Endurance: >500,000 cycles
- Mounting Size: 152.3 mm height, 140 mm width & depth
- Weight: Approx. 2.4 kg
- Certifications: UL, CSA, ATEX, IECEx, CE, SIL 3
Buy the Honeywell VPX Series – Reliable Valve Position Indicator for Industrial Applications
Purchase the Honeywell VPX Series valve position indicator online today and ensure precise valve status monitoring in demanding industrial settings. Designed for outdoor and hazardous environments, it features rugged construction, multiple certifications including explosion-proof and intrinsically safe options, and durability for over 500,000 cycles. With global approvals such as ATEX, IEC Ex, CE, UL, and CSA, this series guarantees safety and reliability across sectors like oil and gas, chemical, petrochemical, and water treatment. Order now to enhance your operational safety and efficiency with a trusted industrial solution.
Buy Honeywell VPX Series valve position indicator now and experience unmatched reliability, durability, and safety in hazardous environments.
Frequently Asked Questions
Where can I buy Honeywell VPX1E2ABBY3A2B?
You can click on the BUY or RFQ button to purchase VPX1E2ABBY3A2B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part VPX1E2ABBY3A2B?
You can download the VPX1E2ABBY3A2B datasheet or visit the Honeywell website for support.
Who is the manufacturer of VPX1E2ABBY3A2B?
Honeywell
