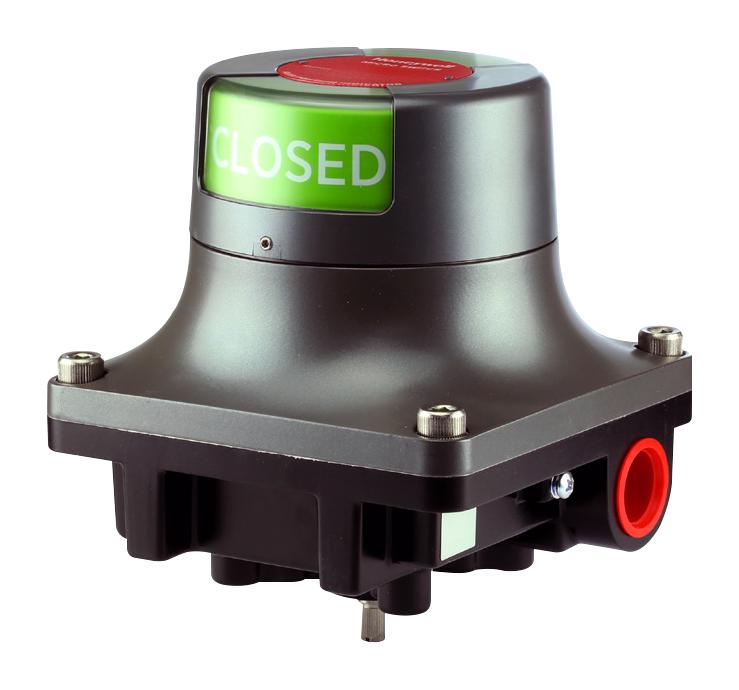

Honeywell VPX1E4ABRG1A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator is designed for outdoor hazardous environments, featuring rugged aluminum housing, weather sealing, and certifications including cULus, ATEX, IECEx. It withstands extreme conditions with NEMA 4X and IP66/IP67 ratings, and supports multiple hazardous area approvals such as Division 1 and Class I certifications. Available with electromechanical and inductive proximity switches, the product ensures high reliability, up to 500,000 cycles, and safety levels including SIL 3. Suitable for oil, gas, chemical, and water treatment applications, it offers adjustable switch settings, multiple colors, and optional accessories.
Honeywell VPX1E4ABRG1A2B Valve Position Indicator Specifications:
- Housing Material: Aluminum with protective paint finish
- Housing Size: 152.3 mm H x 140 mm Wx 140 mm D
- Operating Temperature: -40 °C to 80 °C depending on version
- Sealing: NEMA 4, 4X, 6, 13; IP66, IP67
- Agency Approvals: cULus, ATEX, IECEx, CE, KOSHA (coming soon), NEPSI (coming soon)
- Explosion Proof Designations: Division 1, Class I, Groups B, C, D and E, F, G; ATEX/IECEx I 2G, 12 D, Ex db IIC T6 Gb, Ex tb IIIC T85°C Db
- Intrinsically Safe Rating: Available for proximity switch versions, Ta -40°C to 80°C
- Electrical Ratings: Electromechanical switches 15A 150V AC, 16A 250V AC; Intrinsically safe proximity switches: 8.2 V, <1 mA consumption
- Mechanical Endurance: 500,000 cycles minimum
- Sensing Options: Electromechanical and inductive proximity switches
- Shock & Vibration: Compliant with IEC 60068 standards
- Product Weight: Approximately 2.4 kg
Buy the Buy Honeywell VPX Series Valve Position Indicator Part Number VPX1E4ABRG1A2B Online
Order the Honeywell VPX Series Valve Position Indicator online now to guarantee high durability, comprehensive hazardous area certifications, weather resistance, and precise control capabilities. Designed for demanding outdoor environments, it features a rugged aluminum housing, multiple sealing standards including NEMA 4X, and versatile sensor options like electromechanical and inductive proximity switches. Ensure safe, reliable operation in oil, gas, chemical, and water treatment facilities with this robust valve position indicator supporting up to 500,000 cycles and SIL 3 safety certification. Purchase today for dependable performance.
Buy Honeywell VPX Series Valve Position Indicator with intrinsic safety and explosion-proof certification today and ensure reliable outdoor operation in hazardous environments.
