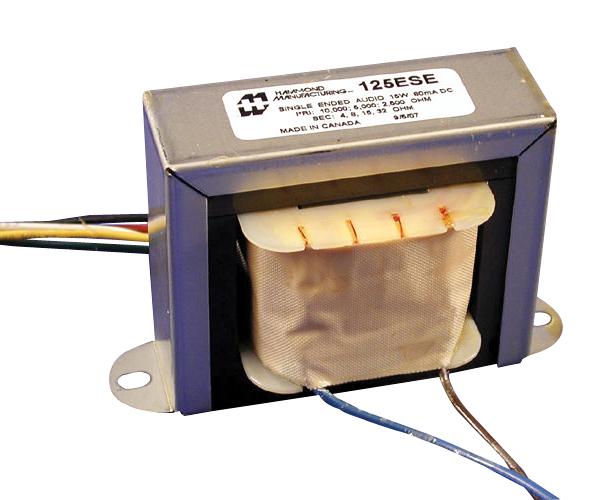

Hammond Manufacturing 125ESE Audio Output Transformer
This audio component is designed for high-quality sound applications, providing clear and reliable performance in audio systems. It features a single-ended tube output circuit, suitable for general purpose or replacement use (not Hi-Fi). With a frequency response of 100 Hz to 15 kHz at full rated power, it offers dependable sound clarity for various audio projects. The open style design includes long primary and secondary leads, with butt stacked cores to reduce core saturation. Impedance ranges from 2,500 to 10,000 Ohms primary and 4 to 32 Ohms secondary. Compact and durable, it suits many amplification setups.
Hammond Manufacturing 125ESE Audio Output Transformer Specifications:
- Frequency response: 100 Hz to 15 kHz at full rated power (+/- 1db)
- Primary impedance: 2,500 to 10,000 Ohms
- Secondary impedance: 4 to 32 Ohms
- Open style with minimum 12-inch long primary & secondary leads
- Core material: butt stacked cores using 29M6 steel with air gap
- Total power handling: 15 Watts
- Maximum D.C. bias: 80 mA
- Weight: 3 lbs.
- Dimensions: Length 4.50 inches, Width 2.36 inches, Height 2.94 inches
- Mounting hole diameter: 0.19 inches
Buy the Hammond 125ESE – Reliable Audio Output for Industrial Applications
Enhance your audio systems with the Hammond 125ESE audio output transformer, expertly designed for reliable sound quality in various applications. This high-quality component offers a wide frequency response, durable construction, and impedance flexibility, making it ideal for audio engineers and hobbyists seeking consistent results. Whether replacing an existing part or building a new amplifier, this transformer ensures clear, reliable performance with minimal distortion. Purchase online today and give your audio projects the dependable quality they deserve for professional-grade sound reproduction.
Order your Hammond Series125ESE tube output today and elevate your audio projects with dependable performance and consistent sound clarity.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 125ESE?
You can click on the BUY or RFQ button to purchase 125ESE from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 125ESE?
You can download the 125ESE datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 125ESE?
Hammond Manufacturing
