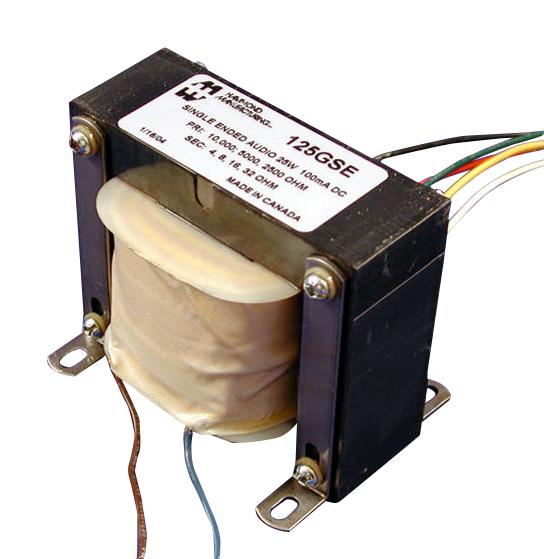

Hammond Manufacturing 125GSE Audio Output Transformer
The 125GSE series are general purpose, single-ended tube output transformers designed for replacement or non-Hi-Fi applications in audio circuits. They feature a frequency response of 100 Hz to 15 kHz (+/- 1dB) and have open style construction with minimum 12-inch long primary and secondary leads. These transformers utilize butt stacked cores made of 29M6 steel with an air gap to minimize D.C. core saturation. Primary impedance ranges from 2,500 to 10,000 Ohms, while secondary impedance ranges from 4 to 32 Ohms, making them suitable for various single-ended tube amplifier applications.
Hammond Manufacturing 125GSE Audio Output Transformer Specifications:
- Frequency response: 100 Hz to 15 kHz (+/- 1dB)
- Construction: Open style with minimum 12 inches long leads
- Core Material: Butt stacked cores using 29M6 steel with air gap
- Primary impedance: Range from 2,500 to 10,000 Ohms
- Secondary impedance: Range from 4 to 32 Ohms
- Maximum Power: 25 Watts (125GSE Model)
- Bias: Class A operation
- MOUNTING STYLE: B
- Dimensions: varies by model, maximum dimensions approximately 4.00 inches in length, mounting hole size 0.187 inches
- Application: Suitable for general purpose, replacement, and audio output circuits in tube amplifiers
Buy the Hammond 125GSE U–Reliable Audio Output Transformers for Industrial Applications
Experience high-quality audio performance with Hammond's 125GSE series of single-ended tube output transformers. Designed for reliable use in general purpose and replacement applications, these transformers deliver a frequency response of 100 Hz to 15 kHz with minimal distortion. They feature a durable open style construction with long leads for flexible installation, utilizing butt stacked cores with an air gap to prevent D.C. saturation. Ranging from 2,500 to 10,000 Ohms primary and 4 to 32 Ohms secondary impedance, they ensure consistent, clear sound in tube amplifier circuits. Purchase online now for dependable performance and seamless integration.
Get Hammond 125GSE today—built for reliable audio performance and long-lasting durability in tube amplifier applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 125GSE?
You can click on the BUY or RFQ button to purchase 125GSE from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 125GSE?
You can download the 125GSE datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 125GSE?
Hammond Manufacturing
