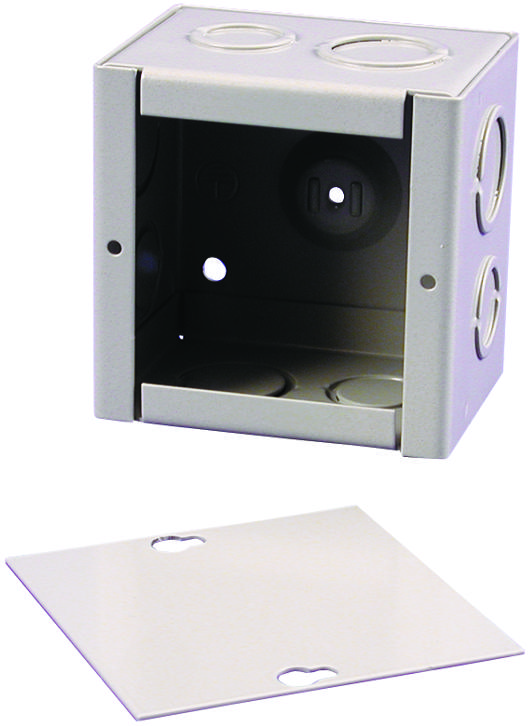

Hammond Manufacturing CSKO16166 Metal Junction Box
The Type 1 Mild Steel Junction Box CSKO Series is designed for indoor commercial use as a junction, pull, or switch box. Constructed from 16 or 14 gauge steel with spot-welded formation, it features flat steel covers secured with plated steel screws and keyhole slots for easy cover removal without screw removal. The box includes knockout plates on all four sides, accessible through removable knockouts, and has through holes in the back for wall mounting. Finished in ANSI 61 gray powder coating, it complies with UL-50 Type 1, CSA Type 1, NEMA Type 1, and IEC 60529, IP20 standards, ensuring durability and safety in various electrical applications.
Hammond Manufacturing CSKO16166 Metal Junction Box Specifications:
- Material: Steel, 16 or 14 gauge depending on size
- Finish: ANSI 61 gray powder coating
- Standards: UL-50 Type 1, CSA Type 1, NEMA Type 1, IEC 60529, IP20
- Construction: Spot welded, formed steel with flat steel covers
- Knockouts: Removable on all four sides
- Mounting: Through holes in the back
- Application: Indoor commercial junction, pull, and switch box
- Dimensions (Example for CSKO16166): A 16.00 inch, B 16.00 inch, C 6.00 inch, DE 13.00 inch, F 15.00 inch, G 1.50 inch, H 0.50 inch, Side Pattern: C-D-E-F-G, Ship Weight: 16 lbs.
Buy the Buy Hammond Junction Box Part Number CSKO16166 Online
Purchase Hammond's Metal Junction Box CSKO16166 online today and ensure safe, durable, and efficient electrical connections for your indoor commercial projects. Featuring knockout plates on all sides, reliable wall mounting options, and a high-quality gray powder coating, this steel enclosure meets industry standards like UL-50 and CSA Type 1. Its robust construction from form-welded steel ensures longevity and safety in demanding environments. Order now to streamline your electrical setup with a proven, dependable solution designed for ease of installation and safety compliance.
Buy Hammond CSKO16166 now and enhance your electrical installations with durable, powder-coated steel junction boxes for reliable indoor use.
Frequently Asked Questions
Where can I buy Hammond Manufacturing CSKO16166?
You can click on the BUY or RFQ button to purchase CSKO16166 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part CSKO16166?
You can download the CSKO16166 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of CSKO16166?
Hammond Manufacturing
