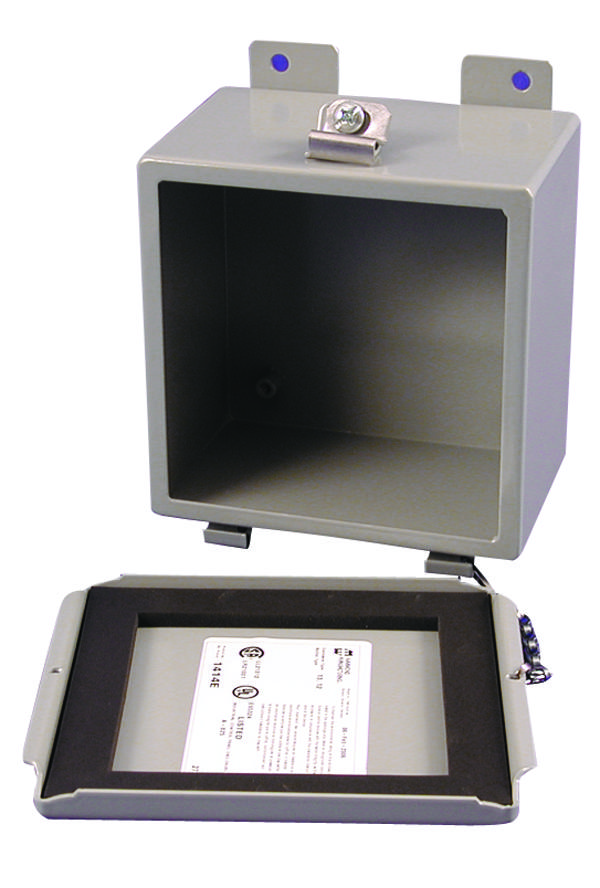

Hammond Manufacturing 1414C Industrial Junction Enclosure
This Type 12 mild steel junction box from Hammond Manufacturing is designed for electrical, hydraulic, or pneumatic control enclosures. Made from 14 or 16 gauge steel, it features smooth, welded seams, a poured-in gasket, and a lift-off cover secured with stainless steel clamps and plated screws, ensuring protection from dirt, dust, oil, and water. It includes an inner panel for models larger than 4" x 4" and provides mounting brackets, grounding studs, and a durable powder-coated finish, suitable for industrial control and wiring applications.
Hammond Manufacturing 1414C Industrial Junction Enclosure Specifications:
- Material: Steel (14 or 16 gauge)
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13, IEC 60529 IP54, JIC EGP-1-1967
- Finish: ANSI 61 gray powder coating, inner panel in white
- Seam: Seamless, welded without knockouts or holes
- Gasket: Poured-in place
- Mounting: Welded brackets for enclosure mounting
- Inner panel: Removable, includes internal threaded weld studs
- Grounding: Bonding and grounding studs on door and enclosure
- Clamps: Stainless steel clamps with plated screws
- Dimensions: Various sizes, from 4" x 4" up to 16" x 14"
- Weight: Ranges from 2 to 25 lbs depending on model
Buy the Buy Hammond Junction Box Part Number 1414C Online
Discover the robust Hammond Manufacturing junction box designed for industrial and control applications. Crafted from sturdy steel with a precision welded design and a durable powder-coated finish, it provides reliable protection from dust, dirt, oil, and water. Its gasketed seal and lift-off cover facilitate easy maintenance and secure enclosure access. Suitable for electrical, hydraulic, or pneumatic controls, it features internal mounting brackets, grounding studs, and a removable inner panel for larger models, making it the ideal choice for professional electrical installations.
Buy Hammond 1414C junction box now and ensure reliable protection for your electrical or hydraulic control system with durable steel construction and secure sealing.
