Hammond Manufacturing 1414PHE Datasheet & Stock

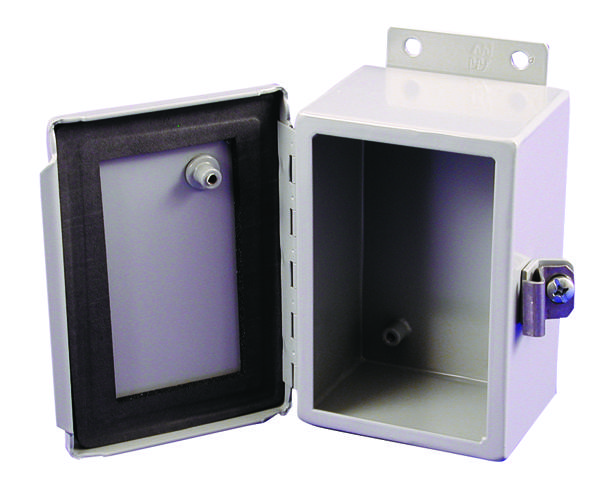

The 1414PHE is a gray (ANSI 61) type-12 Junction Box with inner panel, made of 16 or 14-gauge mild steel with phosphatized and powder coated finish. The 1414 PH series junction box is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. Continuously hinged cover is secured with stainless steel clamps and plated steel screws. A bonding stud is provided on the door and a grounding stud is provided in the enclosure.




Smooth, continuously welded seams without knockouts, cutouts or holes

Covers are formed from 14-gauge steel

Welded brackets provide for enclosure mounting

Seamless poured-in place gasket

Internal threaded weld studs are provided for mounting inner panels

Removable inner panel is finished in white powder coating





Applications


Industrial,

Power Management
