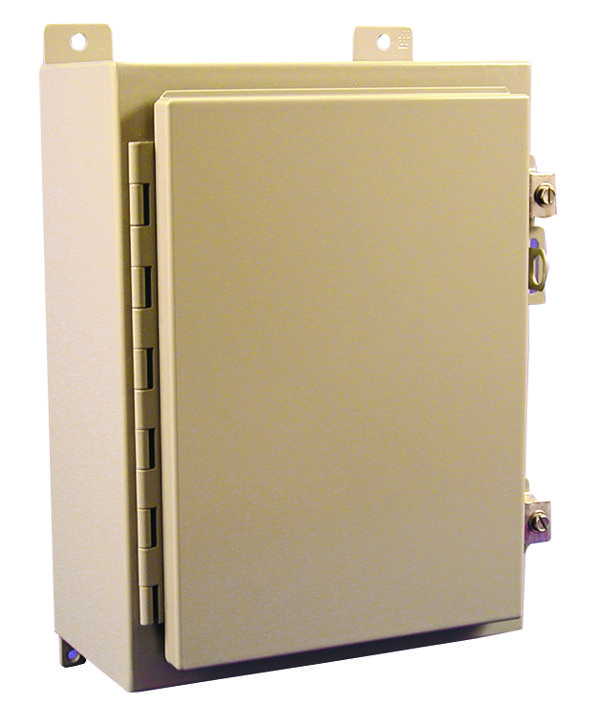

Hammond Manufacturing 1418K6 Electrical Control Enclosure
The 1428 Series wallmount enclosure by Hammond Manufacturing is designed for housing electrical, electronic, hydraulic, or pneumatic controls and instruments. Made of formed 14 gauge steel with a smooth, welded seam construction, it offers protection against dirt, dust, oil, and water, meeting UL 508 Type 12 and 13, CSA Type 12 and 13, and NEMA Type 12 and 13 standards. Features include a continuous hinge door with stainless steel clamps, oil-resistant gaskets, a removable inner panel, and a powder-coated finish for durability. Optional accessories such as inner panels, ventilation, locking kits, and heaters enhance its functionality for industrial control applications.
Hammond Manufacturing 1418K6 Electrical Control Enclosure Specifications:
- Material: Formed 14 gauge steel
- Finish: Recoatable ANSI 61 gray powder coat outside, white inside
- Door: Continuous hinge with stainless steel clamps, padlock provision
- Inner Panel: Removable 12 gauge, coated in white powder
- Seals: Oil resistant gasket, permanently secured
- Protection: UL 508 Type 12 and 13, CSA Type 12 and 13, NEMA Type 12 and 13, IEC IP54
- Construction: Welded seams, smooth, no knockouts or cutouts
- Mounting: Welded brackets, collar studs for inner panel mounting
- Grounding: Bonding and grounding studs on door and enclosure
- Dimensions: Vary by model, e.g., Part No. 1418K6 - 20.00 x 16.00 inches
- Weight: 38 lbs (e.g., Part No. 1418K6)
Buy the Hammond Series 1428 Electrical Enclosure: 1418K6
Secure your electrical and control equipment with the Hammond Series 1428 wallmount enclosure. Crafted from durable form steel with welded seams, it provides excellent protection against dust, dirt, oil, and water. The enclosure features a continuous hinge door secured with stainless steel clamps, a removable inner panel, and a powder-coated finish for longevity. Adjustable accessories such as inner panels, ventilation, and lock kits are available. Designed for industrial environments, this enclosure ensures reliable operation and easy maintenance, making it an ideal choice for electrical control housing.
Buy Hammond Series 1428 enclosure 1418K6 now and experience unmatched durability and protection for your electrical controls.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418K6?
You can click on the BUY or RFQ button to purchase 1418K6 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418K6?
You can download the 1418K6 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418K6?
Hammond Manufacturing
