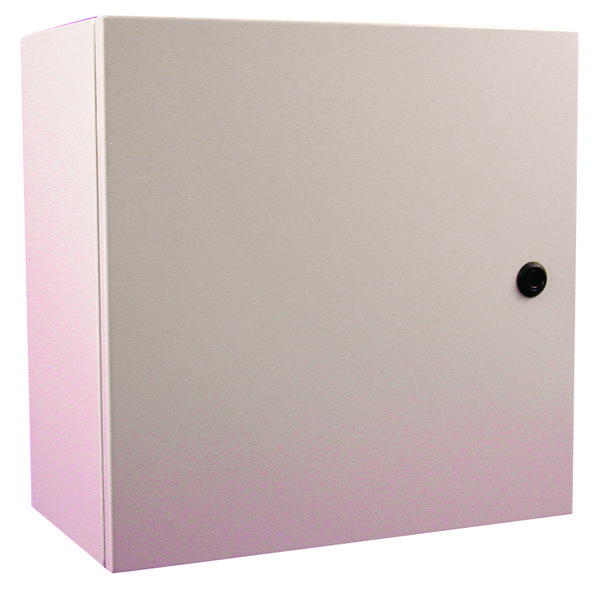

Hammond Manufacturing EN4SD20206GY Wallmount Enclosure
The EN4SD20206GY is a mild steel wall-mount enclosure designed to enclose electrical and electronic equipment, providing protection against harsh environments for wall-mounted applications. It features a sleek design with hidden hinges and attractive latching systems, making it suitable for high-tech installations. The enclosure includes door stiffeners for added strength and rigidity, and offers versatile mounting options. Equipped with a quarter-turn latch and a multi-point, key-lockable handle made of zinc die-cast with a black epoxy finish, it ensures secure access. The cover and enclosure are phosphatized and finished with a powder coating in ANSI 61 smooth grey, both inside and out. It complies with NEMA 3R, 4, and 12 protection ratings. Constructed from formed 14 or 16 gauge steel with smooth, welded seams, it features a formed lip to prevent the ingress of liquids and contaminants, with doors that are easily removable and interchangeable. The gasket is a seamless poured-in-place type, and mounting provisions include collar studs and bonding studs for grounding. Hinges are made from durable 304 stainless steel with stainless steel hinge pins. For wider enclosures, a door alignment guide is provided, and hinges include stainless steel pins. This enclosure is ideal for industrial applications, offering robust protection and professional design.
Hammond Manufacturing EN4SD20206GY Wallmount Enclosure Specifications:
- Material: Formed 14 or 16 gauge steel
- Finish: Powder coated in ANSI 61 smooth Grey (GY)
- Protection Ratings: NEMA 3R, 4, and 12
- Hinges: Stainless steel, pins included
- Latch: Quarter turn, key-lockable, zinc die-cast with black epoxy finish
- Seamless poured-in-place gasket for water tightness
- Doors: Removable and interchangeable
- Mounting: Collar studs, bonding stud for grounding
- Construction: Welded seams ground smooth
- Lip: Formed to prevent liquid ingress
- Door stiffeners: Provided for strength and mounting options
- External dimensions: approximately 20.00 inches (Width) x 20.00 inches (Height)
- Weight: 26 pounds
- Includes hardware kit with panel mounting nuts and sealing washers
- Hinges made of durable 304 stainless steel for corrosion resistance
Buy the Hammond Series Eclipse Wallmount Enclosure: EN4SD20206GY
Order the Hammond Series Eclipse wallmount enclosure EN4SD20206GY online today to ensure reliable protection for your electrical and electronic devices. Crafted from durable formed steel with a powder-coated finish, it offers IP66-rated water and dust resistance, making it ideal for harsh industrial environments. Easy to install with mounting studs and removable doors, it combines professional design and safety features like stainless steel hinges and a secure quarter-turn lock. Protect your valuable equipment with this high-quality enclosure — buy online now and enjoy fast, trusted delivery.
Buy Hammond Series Eclipse wallmount enclosure EN4SD20206GY now and experience unmatched durability and protection for industrial electronic equipment.
