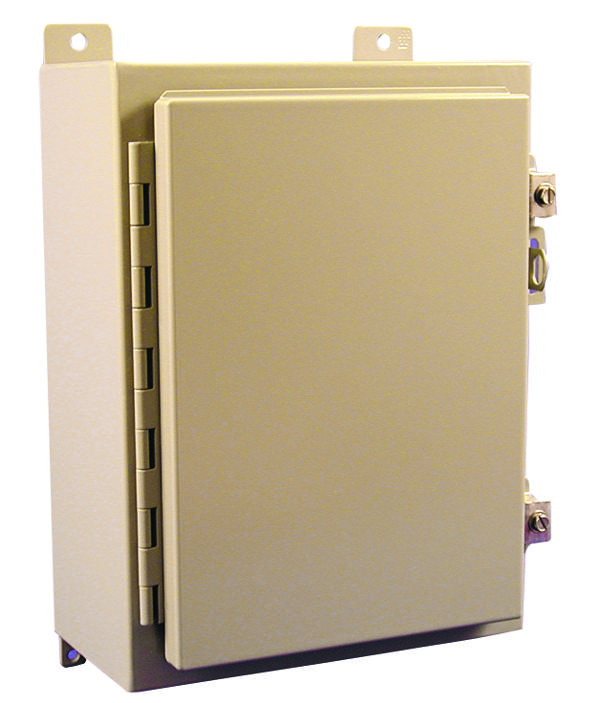

Hammond Manufacturing 1418P8 Steel Wallmount Enclosure
The Hammond Type 12 Mild Steel Wallmount Enclosure 1418 Series offers robust protection for electrical, electronic, hydraulic, or pneumatic controls. Constructed from formed 14 gauge steel with smooth, welded seams, it features a continuous hinge door secured with stainless steel clamps, an oil-resistant gasket, and provision for padlocking. Finished in ANSI 61 gray powder coating externally and white internally, it includes removable inner panels, collar studs for mounting, and bonding and grounding studs for safety. Suitable for demanding industrial environments, it meets UL 508 Type 12 and 13, CSA Type 12 and 13, and NEMA Type 12 and 13 standards, providing reliable protection from dirt, dust, oil, and water.
Hammond Manufacturing 1418P8 Steel Wallmount Enclosure Specifications:
- Material: 14 gauge steel
- Finish: ANSI 61 gray powder coating outside, white inside
- Door: Continuous hinge with stainless steel clamps
- Gasket: Oil resistant, permanently secured
- Inner Panel: Removable, white powder coated
- Mounting: Welded brackets, collar studs for inner panels
- Protection Class: UL 508 Type 12 and 13, CSA Type 12 and 13, NEMA Type 12 and 13
- Seam: Smooth, welded seams without holes or knockouts
- Padlock: Provision for padlocking
- Bonding/ Grounding: Bonding stud on door, grounding stud inside enclosure
- Finish: Coatable smooth ANSI 61 gray external, white internal coating
Buy the Buy Hammond Enclosure Part Number 1418P8 Online
Order the Hammond Steel Wallmount Enclosure 1418P8 today to ensure your electrical systems are protected against dirt, dust, and water. Crafted from durable 14 gauge steel with a smooth welded seam construction, it features a continuous hinge door secured with stainless steel clamps and an oil-resistant gasket for reliable sealing. The enclosure is finished in ANSI 61 gray powder coating with an internal white coating, includes removable inner panels, and provisions for padlocking, bonding, and grounding for safety. Perfect for industrial environments, it meets UL, CSA, and NEMA standards, offering essential protection for your controls and instruments.
Buy Hammond 1418P8 now and experience unmatched reliability and industrial-grade protection for your electrical components.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418P8?
You can click on the BUY or RFQ button to purchase 1418P8 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418P8?
You can download the 1418P8 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418P8?
Hammond Manufacturing
