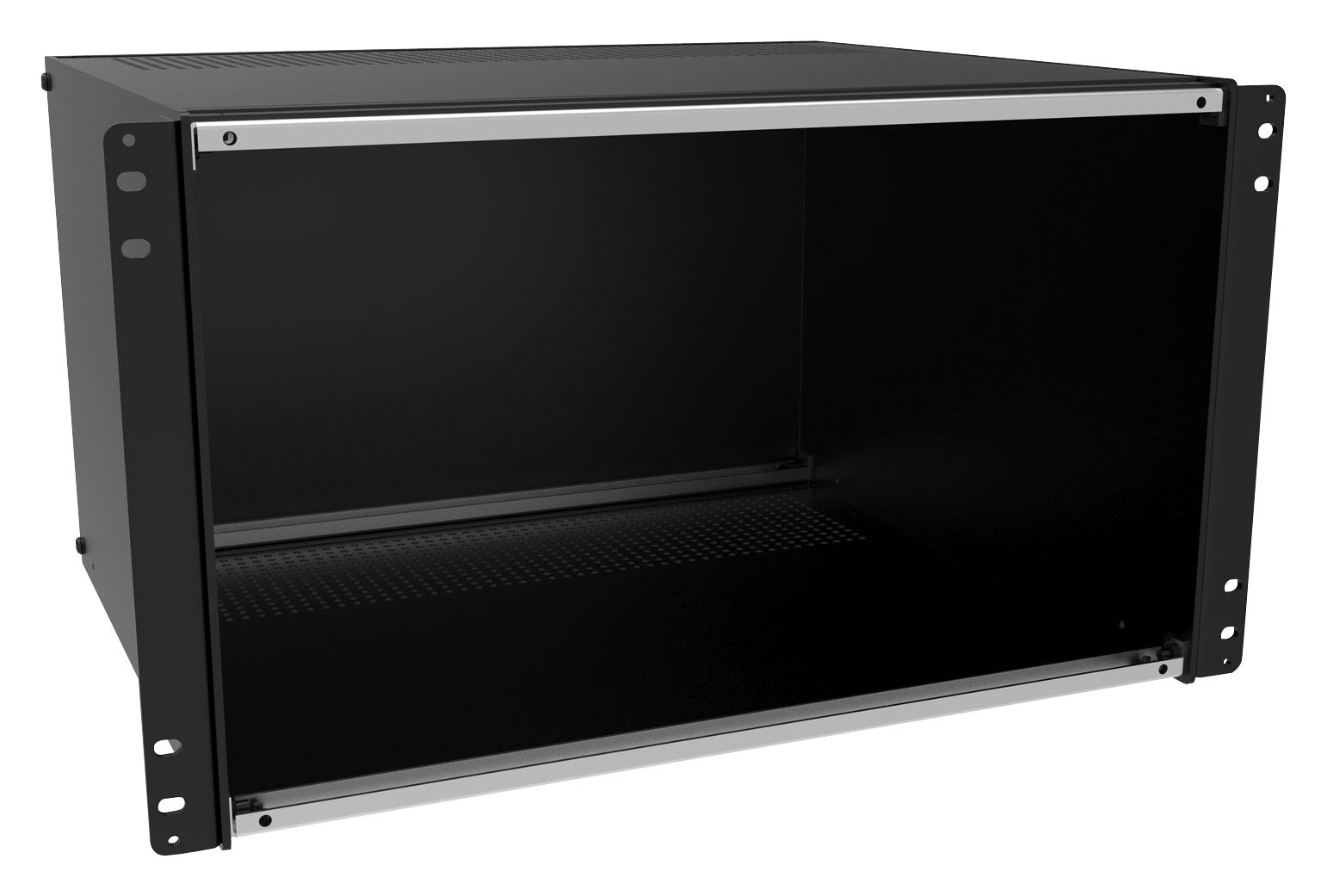

Hammond Manufacturing RMCV9038BK1 Rack Enclosure
The Rack-Mounted Instrument Enclosure from the RMC Series by Hammond Manufacturing offers a lightweight, durable aluminum design suitable for 19" rack-mount or desktop applications. Featuring all machine screw and PEM nut construction, it ensures easy assembly and disassembly, ideal for testing and instrumentation setups. The enclosure includes top, bottom, side, front, and rear panels with rugged black powder coat finish, adjustable mounting brackets, and optional internal aluminum chassis. Its knockdown design simplifies shipping and handling, making it a versatile, RoHS-compliant solution for electronic equipment housing.
Hammond Manufacturing RMCV9038BK1 Rack Enclosure Specifications:
- Material: Aluminum (Type 5050 H32)
- Panels: 0.125" (3.2 mm) thick side panels and brackets, 0.064" (1.6 mm) front & rear panels, 0.062" (1.6 mm) top and bottom panels
- Finish: Rugged satin texture black powder coat
- Weight: Approximately 3.48 lbs (1.58 kg) for smaller models
- Rack Mounting: Uses included brackets, optional internal chassis panel available
- Dimensions: Overall dimensions vary from 8.00" to 17.00" in width and depth; height ranges based on rack units 1U to 6U
- Construction: Machine screw and PEM nut construction for easy assembly
- RoHS Compliance: Yes
- Accessories: Pull handle kits, replacement panels, mounting flanges
- Shipping: Knockdown design for easy handling and shipping
Buy the Hammond RMCV9038BK1 – Reliable Rack Enclosure for Industrial Applications
Purchase the Hammond RMCV9038BK1 rack enclosure online today and ensure reliable housing for your electronic and instrumentation systems. Made from lightweight yet sturdy aluminum, this enclosure provides easy access with minimal screws and includes all necessary mounting hardware. Its durable black powder coat finish protects against corrosion, while the knockdown design offers simple handling and shipping. Perfect for 19" rack systems, it’s suitable for industrial, laboratory, or testing environments where robust, customizable enclosures are essential for protecting sensitive equipment.
Buy Hammond RMCV9038BK1 now and experience unmatched reliability and versatile mounting options for your electronic equipment.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RMCV9038BK1?
You can click on the BUY or RFQ button to purchase RMCV9038BK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RMCV9038BK1?
You can download the RMCV9038BK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RMCV9038BK1?
Hammond Manufacturing
