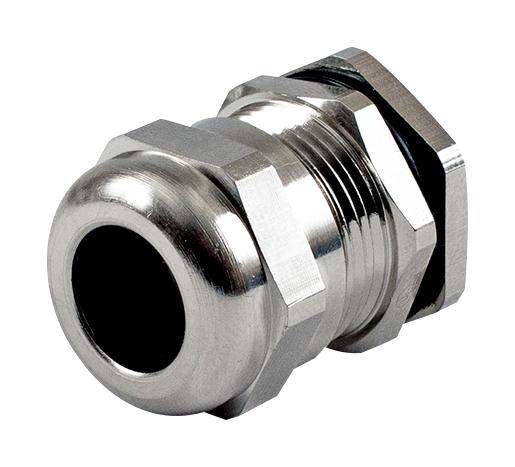

Hammond Manufacturing 1427BCGM20L Liquid-Tight Cordgrip
The Nickel Plated Brass Liquid-Tight Cordgrips from Hammond's 1427BCG Series are designed for secure cable entry and exit in industrial enclosures. They feature a large opening and a nitrile rubber seal for accommodating a wide range of cable diameters, ensuring IP68 protection and compliance with NEMA Types 4, 4X, 6, 6P, 12, and 13 standards. These cordgrips include a locking nut and EPDM o-ring, with strain relief elements that tighten sequentially without damaging cables. Suitable for various thread sizes including PG and metric options, they are UL listed and offer durability in harsh environments.
Hammond Manufacturing 1427BCGM20L Liquid-Tight Cordgrip Specifications:
- Material: Nickel Plated Brass
- Protection: IP68, NEMA Type 4, 4X, 6, 6P, 12, 13
- Thread Sizes: PG7, PG9, PG11, PG13, PG16, PG21, PG29, PG36, PG42, PG48, M12x1.5, M16x1.5, M20x1.5, M25x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5
- Outer Diameter (D): 3 to 38 mm depending on model
- Inner Thread Length: 5 to 10 mm
- Outer Length: 14 to 68 mm depending on model
- Wire Diameter Range: 3 to 38 mm depending on model
- Includes: Locknut and EPDM o-ring
- Sealing Material: NBR (nitrile rubber)
- Strain Relief: Circular sequence tightening
- UL Listed: Yes
- Suitable for: Cable Entry or Exit in Enclosures
Buy the Hammond Series 1427BCG Nickel Plated Brass Liquid-Tight Cordgrip: 1427BCGM20L
Secure your industrial enclosures with the Hammond Liquid-Tight Cordgrip from the 1427BCG Series. Made of nickel plated brass, it offers IP68 protection and excellent strain relief. Suitable for a wide range of cable diameters thanks to versatile thread sizes including PG and metric options. This cordgrip includes a locknut and EPDM o-ring for reliable sealing. Perfect for harsh environments, it ensures safe, strain-resistant cable management, providing durability, ease of installation, and compliance with industry standards. Buy online today for dependable outdoor and industrial wiring solutions.
Buy Hammond 1427BCGM20L now and experience unmatched durability and secure cable sealing for industrial enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1427BCGM20L?
You can click on the BUY or RFQ button to purchase 1427BCGM20L from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1427BCGM20L?
You can download the 1427BCGM20L datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1427BCGM20L?
Hammond Manufacturing
