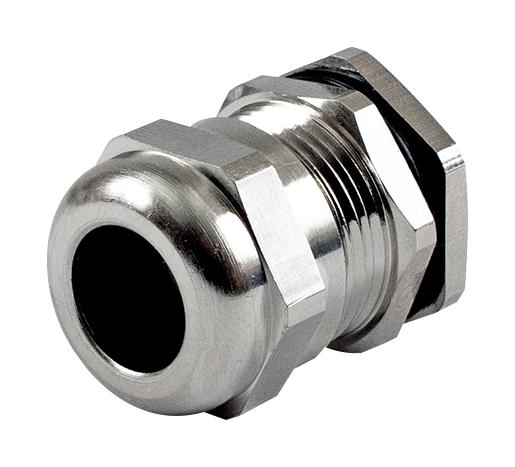

Hammond Manufacturing 1427BCGM63 Liquid-Tight Cordgrip
The Nickel Plated Brass Liquid-Tight Cordgrip series offers robust protection for cable entry points in harsh environments, meeting IP68 and NEMA standards. Suitable for various cable diameters, it features a nitrile rubber seal and strain relief elements that tighten sequentially, ensuring secure cable management without twisting or damage. Compatible with PG and Metric threads, these cordgrips include locknut and EPDM O-ring, providing outstanding sealing and strain relief for electrical enclosures used in industrial and outdoor settings. UL listed ensures quality and safety compliance.
Hammond Manufacturing 1427BCGM63 Liquid-Tight Cordgrip Specifications:
- Material: Nickel Plated Brass
- Thread Types: PG and Metric
- IP Rating: IP68
- Sealing: NBR (nitrile rubber) seal
- Includes: Locknut and EPDM O-ring
- Thread Sizes: PG7, PG9, PG11, PG13, PG16, PG21, PG29, PG36, PG42, PG48, M12x1.5, M16x1.5, M20x1.5, M25x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5
- Cable Diameter Range: 3 mm to 44 mm depending on size
- Outer Lengths: Range from 19 mm to 38 mm
- Inner Thread Length: Range from 5 mm to 10 mm
- Tool Sizes: From 14 mm to 68 mm
- Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13
- UL Listed, certified for safety and durability.
Buy the Hammond 1427BCG M63 – Reliable Liquid-Tight Cordgrip for Industrial Applications
Enhance your industrial control panels and enclosures with the Hammond Liquid-Tight Cordgrip series. Constructed from durable nickel plated brass, these cordgrips provide IP68 protection, preventing dust and water ingress. Suitable for a wide range of cable diameters, they include a nitrile rubber seal and strain relief mechanism that ensures secure and damage-free cable connections. Easy to install with included locknut and O-ring, these UL-listed cordgrips are ideal for harsh environments requiring reliable sealing, safety, and compliance.
Order your Hammond 1427BCG M63 today and ensure secure, sealed cable entry for demanding industrial and outdoor environments.
