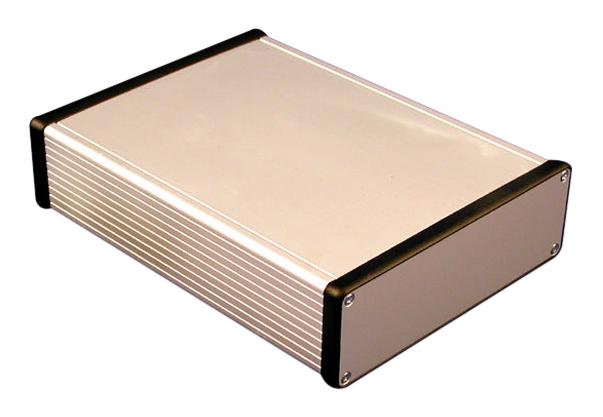

Hammond Manufacturing 1455N1201 Electronics Enclosure
The extrusion enclosure features a durable extruded aluminum construction from 6083 alloy, designed for 100mm wide PCBs. It includes plastic bezels, end panels, self-adhesive rubber feet, and is available in clear or black anodized finishes. The enclosure offers precise slot dimensions, optional flange end panels, and can be factory modified through milling, drilling, or printing. Solid models are available in STEP or IGES formats. Suitable for industrial operating environments, it combines robustness with customizable features for electronics housing and control systems.
Hammond Manufacturing 1455N1201 Electronics Enclosure Specifications:
- Material: Extruded Aluminum 6083
- Finish: Clear Anodized, Black Anodized
- Width: 100mm
- Slot Dimensions: 1.50 mm (.059 inches)
- End Plate Size: 95.02 mm (3.744 inches)
- Overall Length: 120 mm (4.724 inches)
- Height: 53 mm (2.087 inches)
- Optional Flange End Panels: Yes
- Factory Modifications: Milling, Drilling, Printing available
- Solid Models: STEP or IGES formats
- Package Includes: Box, plastic bezels, end panels, #6 Taplight screws, self-adhesive rubber feet
- Design Standards: Durable extrusion, with customizable features for electronics housing
- Application: Electronics enclosures, control system housings, industrial equipment
Buy the Hammond 1455N1201 – Reliable Aluminum Enclosure for Industrial Applications
Purchase the Hammond 1455N1201 aluminum enclosure online today to ensure your electronics are housed in a robust, customizable, high-quality aluminum case. It features a sturdy extruded aluminum construction, available in clear or black anodized finishes, perfect for industrial applications. The enclosure includes plastic bezels, end panels, and rubber feet for easy installation and protection. Factory modifications like milling and drilling are available for tailored solutions. Solid models in STEP or IGES formats facilitate design integration, making this enclosure ideal for control panels, industrial electronics, and custom projects.
Order your Hammond 1455N1201 enclosure today and elevate your electronic project with a durable, customizable aluminum casing designed for industrial needs.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1455N1201?
You can click on the BUY or RFQ button to purchase 1455N1201 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1455N1201?
You can download the 1455N1201 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1455N1201?
Hammond Manufacturing
