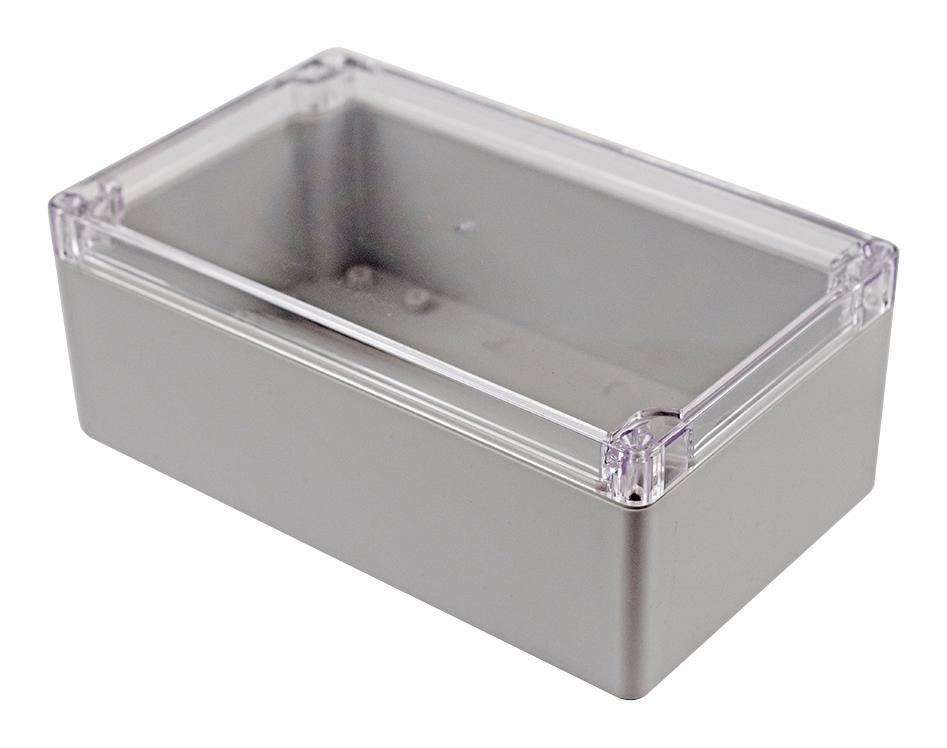

Hammond Manufacturing RZ0269C WaterTight Enclosure
The Hammond RZ series WaterTight ABS & polycarbonate enclosures offer robust protection for electronic components, designed to meet IP65 standards for sealing against dust and water. Available in various sizes with options for opaque or clear lids, these enclosures are ideal for mounting printed circuit boards and DIN rail components indoors or outdoors. Made from UL 94HB-rated ABS or polycarbonate, they feature gasketed lids with two-piece tongue & groove construction, easy wall-mounting, and stainless steel hardware for durability. Suitable for diverse industrial and electronics applications, these enclosures ensure safety, reliability, and environmental protection.
Hammond Manufacturing RZ0269C WaterTight Enclosure Specifications:
- Material: ABS Plastic or Polycarbonate
- Color: RAL1013 (Beige ABS), RAL7035 (Light Gray Polycarbonate)
- Flammability Rating: UL-94HB
- Temperature Range: -30°C to +80°C (ABS), -40°C to +130°C (Polycarbonate)
- Lid Type: Gasketed with two-piece tongue & groove
- Mounting: Wall-mount outside gasket perimeter, internal points for PCB or DIN rail
- Hardware: Stainless steel screws with inserts
- Available Sizes: RZ0250, RZ0256, RZ0362, RZ0366, RZ0203, RZ0205, RZ0212, RZ0214, RZ0223, RZ0269, RZ0218, RZ0232
- Lid Options: Opaque or transparent polycarbonate lids, part numbers ending in 'C' for clear lids
- Ingress Protection: IP65
- Suggested for indoor and outdoor use depending on material
- Dimensions: Varies by model, e.g., RZ0269C 200 x 120 x 75 mm
Buy the Hammond Series RZ WaterTight Enclosure: RZ0269C
Secure your electronic projects with the Hammond RZ0269C WaterTight Enclosure, featuring durable ABS construction, IP65 sealing, easy wall-mounting, and options for clear or opaque lids. These enclosures are perfect for protecting sensitive electronics indoors or outdoors against dust, water, and oil. With stainless steel hardware and a gasketed lid design, they ensure a secure, environmental-resistant solution for PCB mounting and DIN rail components in various industrial or commercial applications. Invest in quality and reliability today.
Buy Hammond RZ0269C water-tight enclosure now and experience unmatched reliability and protection for your electronic components.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0269C?
You can click on the BUY or RFQ button to purchase RZ0269C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0269C?
You can download the RZ0269C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0269C?
Hammond Manufacturing
