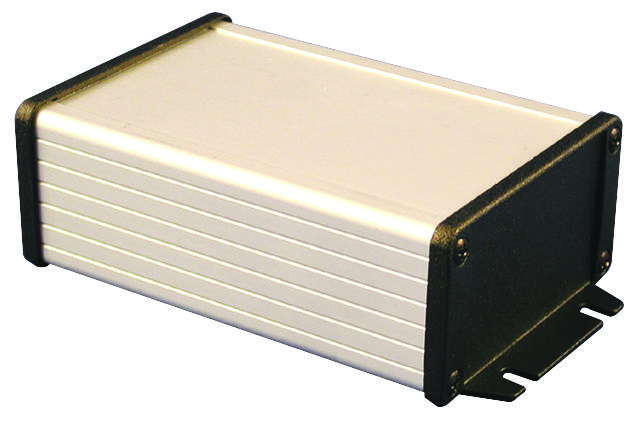

Hammond Manufacturing 1457C1202E Waterproof Enclosure
This waterproof enclosure made from extruded aluminum 6063 offers a robust and IP65-rated protection suitable for industrial applications. It features a clear anodized finish, black powder-painted end panels, and stainless steel screws for durability. The enclosure includes rubber feet, gaskets, and O-rings for a secure, moisture-resistant seal. Designed to accommodate 120mm x 55mm PCBs, it provides a deep recess for labels or keypads, with precise face-to-face dimensions of 75mm. The box and end panels are available in different finishes and sizes, ensuring versatile deployment in harsh environments.
Hammond Manufacturing 1457C1202E Waterproof Enclosure Specifications:
- Material: Extruded Aluminum 6063
- Finish: Clear anodized or black powder paint
- Protection Class: IP65
- Dimensions: Inside face to face 75mm, depth 33.90mm, assembled size approximately 50.31mm x 41.52mm
- End Panels: Black powder painted, 50.31mm or 41.52mm
- Mounting: Suitable for 120mm x 55mm PCB
- Screws: #6 Taptight, stainless steel
- Additional Features: Deep recess for labels/keypads, rubber feet, gaskets, O-rings included
- Tolerance: Aluminum extrusion tolerance of ±0.02 inches
- Resistance: EMI/RFI shielding with optional IP54 and IP65 variants
- Manufactured by Hammond, model 1457C1202E
Buy the Hammond 1457C1202E – Reliable Waterproof Enclosure for Industrial Applications
Order the Hammond 1457C1202E waterproof enclosure online today and ensure your electronic components are protected against moisture and environmental hazards. This durable aluminum enclosure features a IP65 rating, perfect for industrial settings demanding high protection standards. It offers easy mounting for 120mm x 55mm PCBs, with deep recesses for labels or keypads, and is finished with corrosion-resistant anodized or powder-coated surfaces. Reliable, versatile, and built for challenging conditions, this enclosure provides peace of mind for your sensitive electronics.
Buy Hammond 1457C1202E waterproof aluminum enclosure now and experience robust protection, customizable finishes, and reliable performance in harsh environments.
