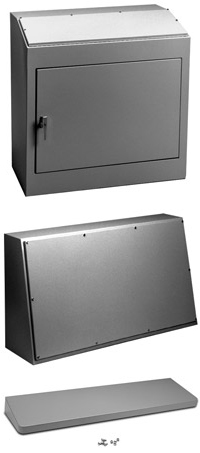

Hammond Manufacturing 147248 Industrial Console Enclosure
This durable sloped front console is engineered from robust steel to house electrical, electronic, hydraulic, or pneumatic controls. It features a gray powder-coated finish, providing corrosion resistance and a professional appearance. The console includes a removable inner panel, front instrument panel, and access doors with secure locking mechanisms. It is designed to meet UL 508 Type 12, CSA Type 12, and NEMA Type 12 standards, ensuring high protection from dust, dirt, oil, water, and other contaminants. Its modular design allows easy installation and maintenance, making it ideal for industrial control applications.
Hammond Manufacturing 147248 Industrial Console Enclosure Specifications:
- Material: Steel
- Finish: Gray powder coating
- Type: NEMA 12, UL 508, CSA Type 12
- Construction: Formed 14 gauge steel, welded seams
- Overall Dimensions: 24 inches length, 48 inches width, 36 inches height
- Front Panel: Sloped, hinged, removable
- Access Doors: Two, with three-point latch, keyed lock
- Inner Panel: Removable, formed from 12 gauge steel
- Gaskets: Oil resistant, mechanically retained
- Standards Compliant: IEC 60529 IP65
- Application: Industrial electrical and control equipment housing
- Additional Features: Removable writing surface, literature pocket
- Mounting: Collar studs for inner panels, grounding studs for doors
- Finish inside and outside: ANSI 61 gray powder coating
Buy the Buy Hammond Enclosures Part Number 147248 Online
Order the Hammond industrial console enclosure 147248 online today for a durable, reliable solution to protect electrical and control systems. Crafted from heavy-duty steel with a corrosion-resistant gray powder coating, this enclosure features a sloped front for easy access, secure locking doors, and a removable inner panel for customization and maintenance. It complies with UL, CSA, and NEMA standards, offering IP65 rated protection against dirt, water, and oil. Perfect for industrial automation, electrical control, and instrumentation housing, ensuring your equipment remains safe and functional.
Get Hammond enclosure 147248 today—built for industrial durability and protection from dust, oil, and water with easy modular installation.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 147248?
You can click on the BUY or RFQ button to purchase 147248 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 147248?
You can download the 147248 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 147248?
Hammond Manufacturing
